Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color

Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color

  • Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color
  • Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color
  • Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color
  • Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color
Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color
Product Details:
Place of Origin: Dongguan City, China
Brand Name: Kingstone
Certification: CE,SGS
Model Number: JL-268
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 25-45 DAYS
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Type: Rotary Machine Machine Material: Steel
Stations: 20 Station Wrokers: Need 1-2 Workers
Output: 200-280 Pairs/hour Gurantee: 2 Years, The Longest In China
Products: Insoles. Name: Machine Pp Insole
High Light:

PP Insole Sole Molding Machine

,

16 Station Injection Mould Machine

,

Rotary Shoes Injection Mould Machine



Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color





Machine PP Insole Descriptions:



PP Insole Making Machine for Ladies High Heels Shoes.



It's a new technology for making insole/midsole, high effeciency!





Machine PP Insole Specifications:



1. Machine model:JL-268

2. Workstation: 20 stations, can make 8/12/16/24/30 stations as your requirements.

3. Clamping force: 120TON

4. Opening stroke: 210mm

5. Mould dimension: 600*280mm

6. Height of injection nozzle: 280mm

7. Injector: 1 set

8. Screw diameter: 60mm

9. Screw L/D ratio: 20L/D

10. Max. injection volume: 600cm3

11. Injection speed: 10cm/s

12. Screw rotation speed:0-200 R.P.M







Electricity Consumption of Machine PP Insole
Heating power of injector KW 7
Hydraulic unit motor KW 18.5
Total electric consumption KW 25.5
Temperature control Section 4
Dimension and Weight
Machine dimension (L*W*H)MM 6000*3600*2300
Machine weight KGS 6500

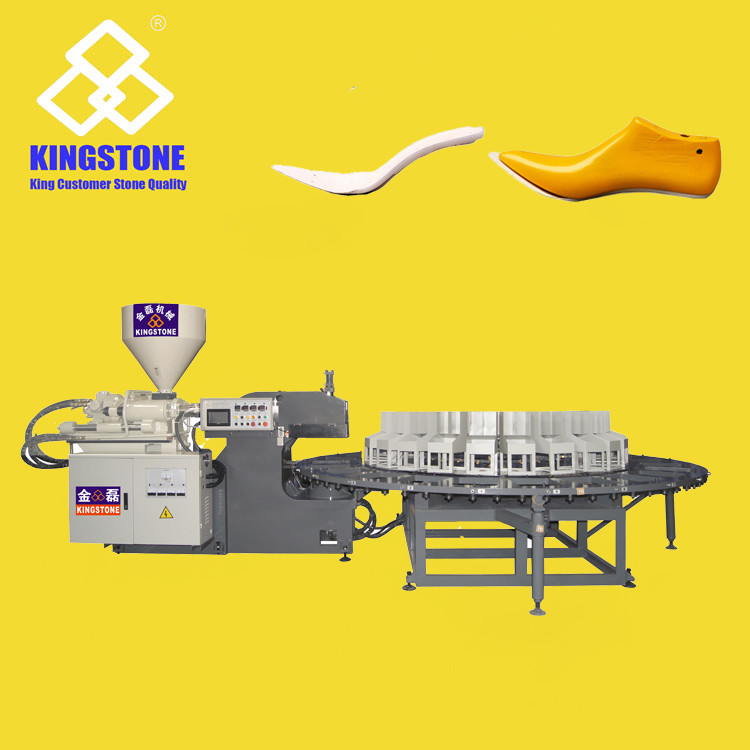

Machine Details:



Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color 0

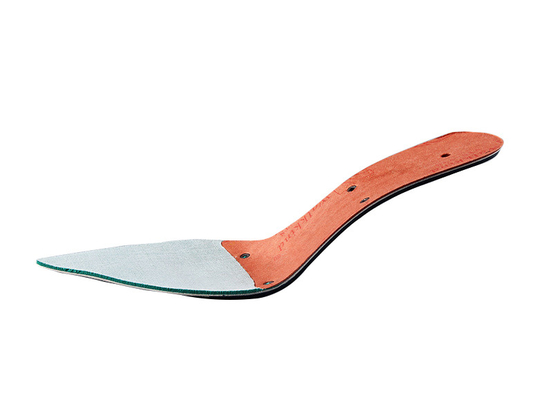

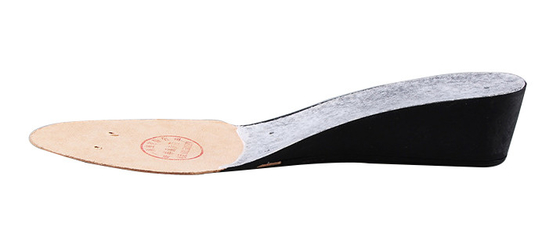

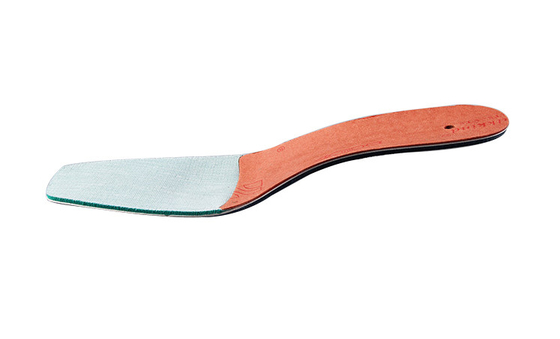

Finished products by this machine:



Some samples for your reference:



Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color 1Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color 2Rotary Shoes Injection Mould Machine PP Insole 16 Station Single Color 3







Terms of Payment:


A. 30% down payment, balance shall be paid before shipment.
B. Other terms are negotiated.





After-sales Service



1. We will send technicians to buyer's factory for installation and training for 5-10days;

2. Our technicians will help you to install machine and works machine;

3. After the machine works well, our technicians will teach your workers how to produce shoes, and how to solve some emergency conditions.

4. After your workers can produce shoes very skilled, then our technicians back.

5. Also you can send your technicians to our factory for training.

6. Any questions can contact us, we will reply you within 24 hours.
