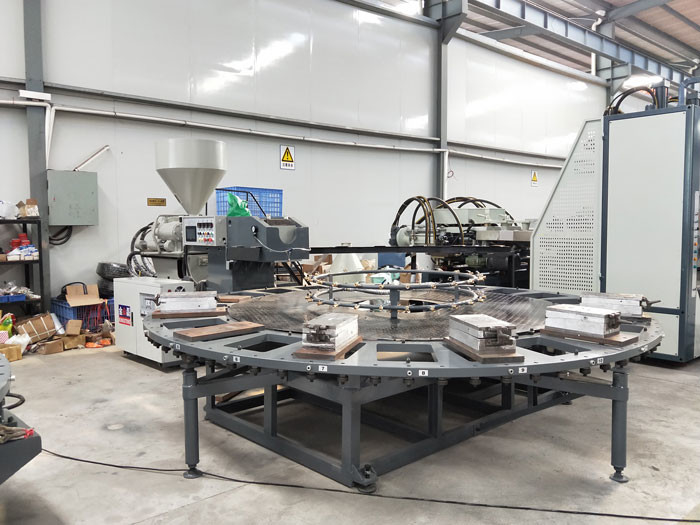

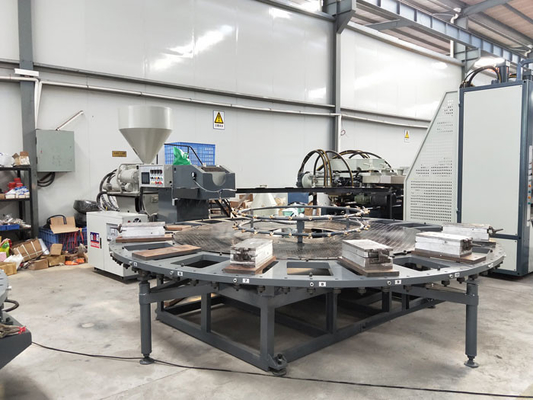

12/16/20/24 Stations Rotary Injection Molding Machine 2 Years Gurantee

12/16/20/24 Stations Rotary Injection Molding Machine 2 Years Gurantee

  • 12/16/20/24 Stations Rotary Injection Molding Machine 2 Years Gurantee
  • 12/16/20/24 Stations Rotary Injection Molding Machine 2 Years Gurantee
12/16/20/24 Stations Rotary Injection Molding Machine 2 Years Gurantee
Product Details:
Place of Origin: Dongguan City, China
Brand Name: Kingstone
Certification: CE,SGS
Model Number: JL-268
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 25-45 DAYS
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Type: Automatic Workstaions: 12/16/20/24 Stations
Material: PP, Sebs Automatic: YES
Output: 200-280 Pairs/hour Gurantee: 2 Years, The Longest In China
Delivery: 25-30 Days
High Light:

rotary injection machine

,

rotary molding machine

,

24 Stations Rotary Injection Molding Machine

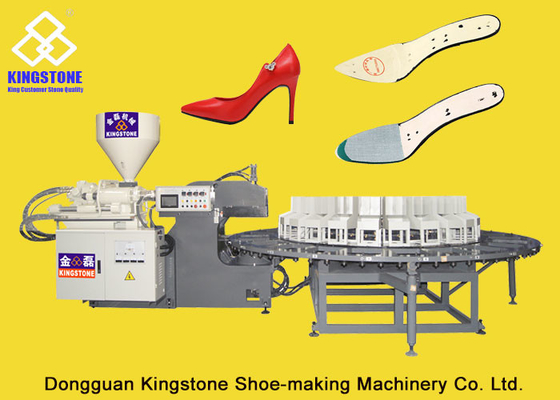

Rotary Women High Heel Making Machine / High Heel Insole Injection Moulding Machine JL-268


Advantages:

1. Mainly used for produce pp insoles, sebs insoles, for sports shoes, high heels shoes.



2. Using PP material, directly injection and molding.


3. High production, less workers and low cost.


4. Stronger toughness and hardness, better support.


5. The shape of injection midsole is standard and smooth, it makes the final shoes be more beautiful.


6. Shoe last fit precisely, it is not easy to be out of shape and comfortable to wear.




Specifications
Machine model JL-268-20S
Mould-clamping Unit
Work station   20
Clamping force TON 120
Opening stroke MM 210
Mould dimension MM 600*280
Height of injection nozzle MM 280
Injection Unit
Injector SET 1
Screw diameter MM 60
Screw L/D ratio L/D 20
Max.injection volume cm3 600
Injection speed Cm/s 10
Screw rotation speed R.P.M 0-200
Electricity Consumption
Heating power of injector KW 7
Hydraulic unit motor KW 18.5
Total electric consumption KW 25.5
Temperature control Section 4
Dimension and Weight
Machine dimension (L*W*H)MM 6000*3600*2300
Machine weight KGS 6500
*Note:Above data only for reference.



Features

1. By computer, Electrical box, PLC control---more simple, fast and precision.
2. Computerization in analysis and design---the machine is well in stability.
3. Conformed to human engineering in design---it features operational compatibility.
4. It can be equipped with servo system. --- can save 30~40% electricity.
5. It can be equipped with cooling system. --- can cooling the mould and extend the mould life.
6. The well-interconnected oil circuit by electric control --- can reduce waiting time, quicken production rate, and promote productivity.


Our main products:

PVC/PCU Slipper Air Blowing Moulding Machine, PP Inner Sole Injection Moulding Machine,1/2/3 Color Plastic Shoes and Soles Injection Moulding Machine, Plastic Rain Boots Injection Moulding Machine, EVA Foam Injection Moulding Machine and Rubber Sole Automatic Moulding Machine etc.
PVC Slipper Mould, PVC Sandals Mould, PVC Flip Flop Mould, PVC/TR/TPR/TPU Sole Mould, PP Insole Mould, EVA Shoe Mould, PVC Rain Boot Mould, PU Sole Mould, Rubber Sole mould, etc.




Terms of Payment:


A. 30% down payment, balance shall be paid before shipment.
B. Other terms are negotiated.


After-sales Service

1. We will send technicians to buyer's factory for installation and training for 5-10days;
2. Our technicians will help you to install machine and works machine;
3. After the machine works well, our technicians will teach your workers how to produce shoes, and how to solve some emergency conditions.
4. After your workers can produce shoes very skilled, then our technicians back.
5. Also you can send your technicians to our factory for training.
6. Any questions can contact us, we will reply you within 24 hours.


More questions please send inquiry, or contact us in below information. Thanks! Welcome to KINGSTONE!
