| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE,SGS |
| Model Number: | JL-268 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Inner Sole Injecton Moulding Machine | Workstaions: | 12/16/20/24 Stations |
|---|---|---|---|
| Material: | PP, Sebs | Wokers Need: | 1 People |
| Output: | 200-280 Pairs/hour | Gurantee: | 2 Years, The Longest In China |
| Products: | Insole Or Midsole For High Heels, Stilettos Shoes | ||
| High Light: | rotary table injection molding machine,rotary injection machine,Inner Sole Direct Injection Moulding Machine |
||

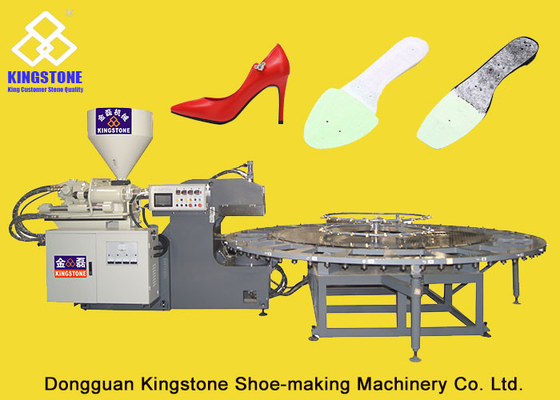

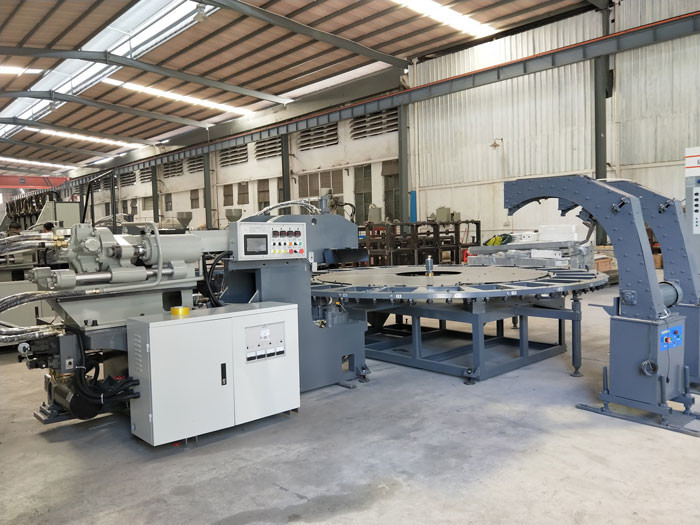

New Technology Direct Rotary Injection Molding Machine for Ladies Shoes Inner Sole JL-268
Specifications:
1. The machine is used to produce inner soles for ladies high heels.
2. It's a new technology for make high heel insoles.
3. Using PP material, directly injection and molding.
4. High production, less workers and low cost.
| Machine model | JL-268-20S | |
| Mould-clamping Unit | ||
| Work station | 20 | |
| Clamping force | TON | 120 |
| Opening stroke | MM | 210 |
| Mould dimension | MM | 600*280 |
| Height of injection nozzle | MM | 280 |
| Injection Unit | ||
| Injector | SET | 1 |
| Screw diameter | MM | 60 |
| Screw L/D ratio | L/D | 20 |
| Max.injection volume | cm3 | 600 |
| Injection speed | Cm/s | 10 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption | ||
| Heating power of injector | KW | 7 |
| Hydraulic unit motor | KW | 18.5 |
| Total electric consumption | KW | 25.5 |
| Temperature control | Section | 4 |
| Dimension and Weight | ||
| Machine dimension | (L*W*H)MM | 6000*3600*2300 |
| Machine weight | KGS | 6500 |
| *Note:Above data only for reference. | ||
Company Introduction:
Dongguan Kingstone Machinery Co., LTD., as one of the famous rotary plastic footwear injection molding machine manufacturers in the industry, the industry first-class rotary injection molding machine R&D and manufacturing base, over the years with the product variety is complete, personalized type many, quality excellent, and is famous world without time service in the industry, the product sells in distant markets the world nearly 30 countries and regions, at the same time also in Peru, Nigeria, Brazil, Bangladesh, Mexico and many other countries set up offices and agents.
Terms of Payment:
A. 30% down payment, balance shall be paid before shipment.
B. Other terms are negotiated.
After-sales Service
1. We will send technicians to buyer's factory for installation and training for 5-10days;
2. Our technicians will help you to install machine and works machine;
3. After the machine works well, our technicians will teach your workers how to produce shoes, and how to solve some emergency conditions.
4. After your workers can produce shoes very skilled, then our technicians back.
5. Also you can send your technicians to our factory for training.
6. Any questions can contact us, we will reply you within 24 hours.
More questions please send inquiry, or contact us in below information. Thanks! Welcome to KINGSTONE!
