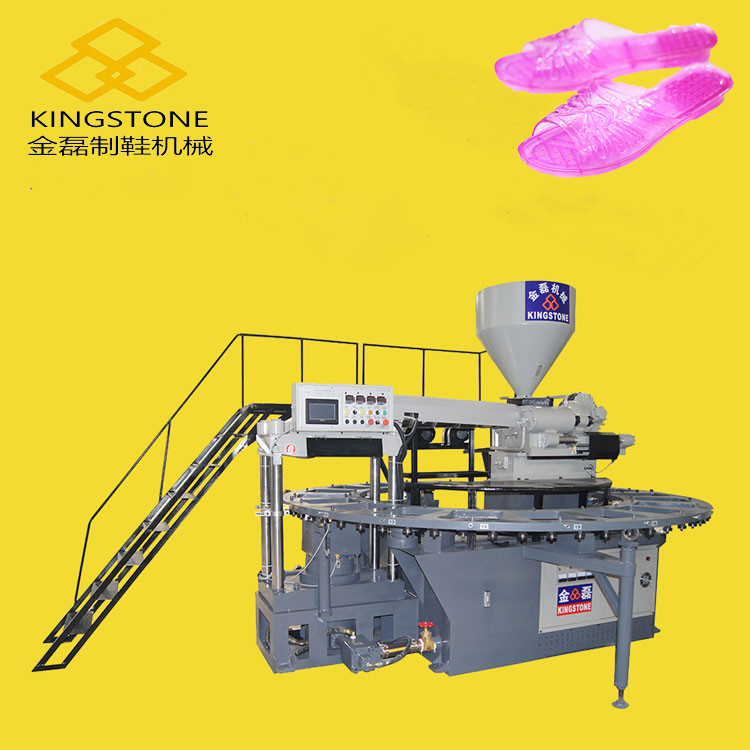

16/20/24 Stations Footwear Making Machine Plastic PVC Material

16/20/24 Stations Footwear Making Machine Plastic PVC Material

  • 16/20/24 Stations Footwear Making Machine Plastic PVC Material
  • 16/20/24 Stations Footwear Making Machine Plastic PVC Material
  • 16/20/24 Stations Footwear Making Machine Plastic PVC Material
  • 16/20/24 Stations Footwear Making Machine Plastic PVC Material
  • 16/20/24 Stations Footwear Making Machine Plastic PVC Material
16/20/24 Stations Footwear Making Machine Plastic PVC Material
Product Details:
Place of Origin: Dongguan City, China
Brand Name: Kingstone
Certification: CE, SGS
Model Number: JL-128
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 25-45 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Name: Footwear Making Machine Workstation: 12 Stations
Color: Single Color Products: Sandals, Women Slipper, Boots
Suitable Material: PVC Gurantee: 2 Years, The Longest Time In China
High Light:

16 Stations Footwear Making Machine

,

Plastic PVC Shoe Machine

,

20 Stations Footwear Making Machine



16/20/24 Stations Footwear Making Machine Plastic PVC Shoe Machine​





Footwear Making Machine Description:



1. Suitable material: PVC



2. Products: sandals, jelly shoes, crystal shoes, short boots.



3. Conformed to human engineering in design, it features operational compatibility.



4. Automatic type to save labor and increase the production capacity.



5. It need people to open mold and take the shoes out.



6. It has alarm to keep safe working.





Footwear Making Machine Specifications:



Machine model JL-105
Mould-clamping Unit
Work station   16,20
Clamping force TON 120-150
Opening stroke MM 210
Mould dimension MM 600*280
Height of injection nozzle MM 280
Injection Unit
Injector SET 1
Screw diameter MM 65/70/75
Screw L/D ratio L/D 20
Max.injection volume cm3 650-1000
Injection speed Cm/s 10
Screw rotation speed R.P.M 0-200
Electricity Consumption Normal Servo
Heating power of injector KW 7 7
Hydraulic unit motor KW 18.5 15.7+7.5
Total power KW 25.5 30.2
Temperature control Section 4 4
Power consumption per hour Kw/h 15-20 7-10
Dimension and Weight 20 Stations
Machine dimension (L*W*H)MM 4600*3700*2500
Machine weight KGS 6500
*Note:Above data only for reference.

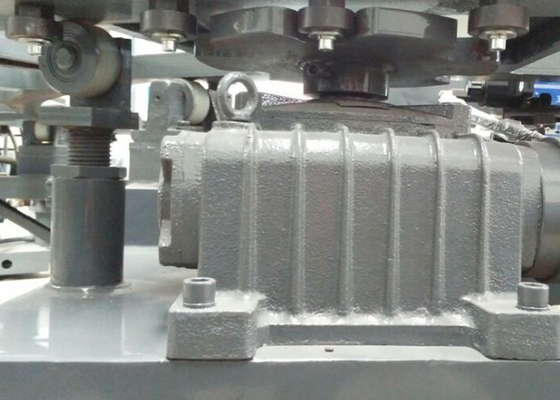

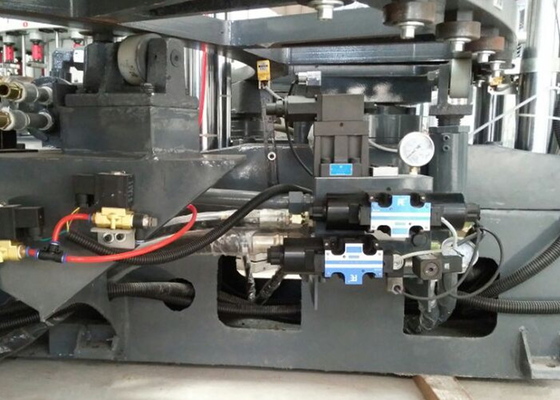

Machine Details:

This picture is taken while we test the material with mold, you can check the mold and machine, the capacity is 100-120 pairs per hour.


16/20/24 Stations Footwear Making Machine Plastic PVC Material 0





Packing



1. For machine, we will use one container to ship.



2. For small machine, we will choose wooden box to pack.



3. We has 9 years export experiences for shoe making machine.







Guarantee



2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.







After-sales Service



1. We has professional engineer for international service, he will go to your factory for help.



2. He will help your workers to install the machine;



3. He will teach your workers how to produce shoes, and how to solve some emergency conditions.



4. He will help for machine instruction, electricity install.



5. If you has any confusion in the production, we will provide some ideas for you.



Samples pics:

16/20/24 Stations Footwear Making Machine Plastic PVC Material 1

16/20/24 Stations Footwear Making Machine Plastic PVC Material 216/20/24 Stations Footwear Making Machine Plastic PVC Material 3

we have more than 30 models of machines depends on shoe material and type,sent me your shoe samples for reference, it will be great for give you right machine information.thank you!
