| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-128 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Rotary Sandal Making Machine | Workstation: | 10/12/16/20/24/30 Stations |
|---|---|---|---|
| Size: | 4.3*3.3*2.5m | Full Automatic: | YES |
| Output: | 110-150 Pairs/hour | Gurantee: | 2 Years, The Longest Time In China |
| Suitable Material: | PVC | Products: | PVC Shoes, Jelly Shoes, Crystal Shoes |
| High Light: | two color injection molding machine,shoe production machines,One Color Sandal Making Machine |
||

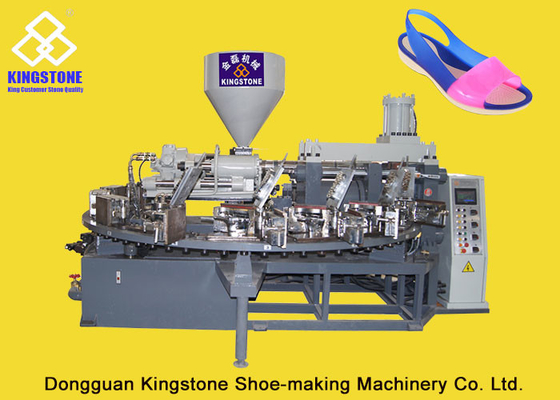

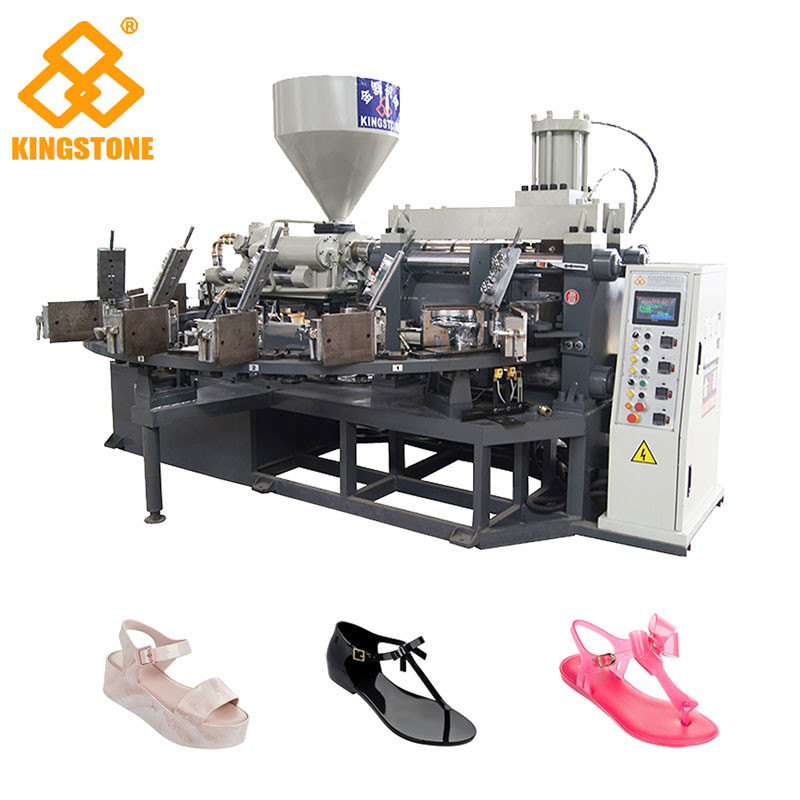

Automatic Rotary One Color Plastic Jelly Shoes Injection Moulding Machine JL-128
Features:
1. Suitable material: PVC TPR
2. Specially abailable for producing various jelly shoes, crystal slippers, men's/women's low heel rain boots, sandal. It is an ideal high-efficiency injection moulding machine currently in shoes making industry.
3. Simple structure, easy operation and safety.
4. PLC program control of industrial man-machine interface, display of touch screen.
5. Low-power design, save energy.
Specifications:
1. Machine Model: JL-128
2. Workstations: 12/16/20 stations for choose
3. Clamping force: 120-150ton
4. Opening stroke: 210mm
5. Mould dimension: 600*280mm
6. Height of injection nozzle: 280mm
7. Injector: 1
8. Screw diameter: 60/65/70/75mm (as per the shoes you make)
9. Screw L/D ratio: 20 L/D
10. Max.injection volume: 650-1000CM3
11. Injection speed: 10Cm/s
12. Heating power of injector: 7kw
13. Hydraulic unit motor: 18.5kw
14: Total power: 25.5kw
15. Machine dimension: 4600*3700*2500mm
16. Machine weight: 6500kgs
Finished Products:
Short-heel rain boots for your reference:
