| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-108 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package, One container |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | D/A, D/P, L/C, T/T |
| Supply Ability: | 50 SET PER MONTH |
| Features: | Recylce, With Air Blowing System | Type: | Automatic Rotary Type |
|---|---|---|---|
| Installed Size: | 4.6*3.6*2.3m | Warranty: | 2 Years, The Longest Time In China |
| Stations: | Standard 20 Stations, Can Customized | Products: | Can Make Slippers, Sandals, Flip Flops |
| Name: | Machine Mini Plastic Slipper | ||
| High Light: | Mini PVC Slipper Making Machine,12 Station slipper shoe making machine,PVC Slipper Making Machine Rotary |
||

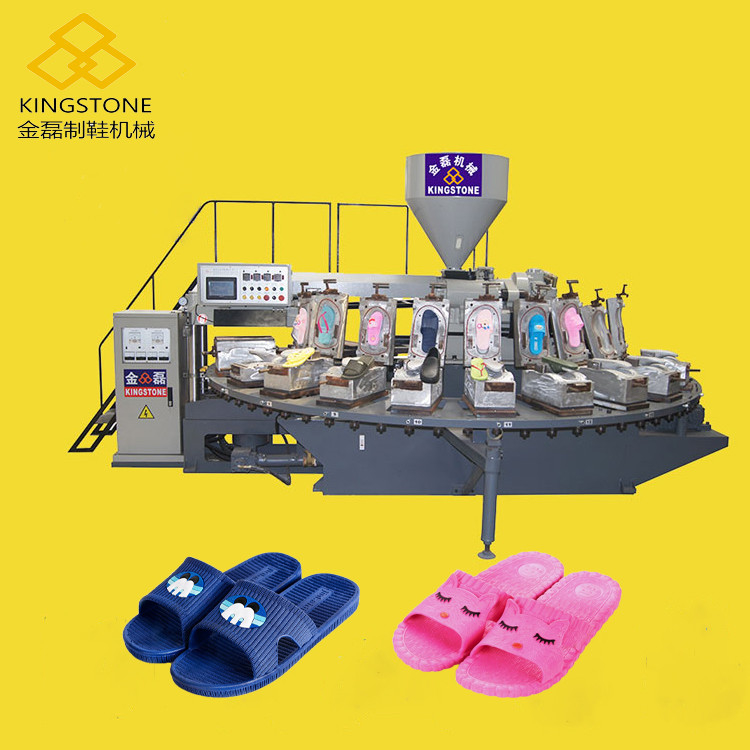

Rotary Machine Mini Plastic Slipper Sandals 12 Station PVC Material
JL-108
PVC slippers production line.jpg.pdf
Kids' Sandals Making Machine is for produce pvc pcu slippers, shoes, sandals, flip flops.
We provide 12/16/20/24/30 stations for your choose.
Why Choose us?
Our 5S management principle.
1. To share our 30 years experiences with our respected customer.
2. To supply whole production line for making shoes (Include Machine, Mould, Material).
3. To support our customer on Factory Building, Factory Management, Production & Package for Shoes, Sales Layout, Market Development.
4. To service customer with machine operation and maintenance.
5. To solve the problem quickly and efficiently on the after sales service.
Machine Mini Plastic Slipper Features:
1. It could be equipped with air blowing system and can produce light weight, particularly the need for reinforced cooling effect. Computerization in analysis and design, the machine is well in stability.
2. The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.
3. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

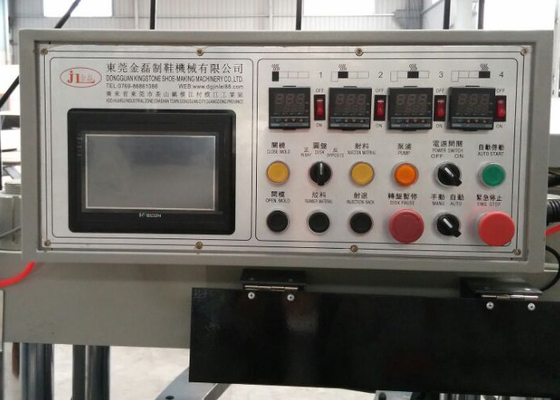

4. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.
5. Conformed to human engineering in design, it features easy and friendly operation.
6. The devised C-shaped structure that strengthens cooling system suits particularly the need for reinforced cooling effect.

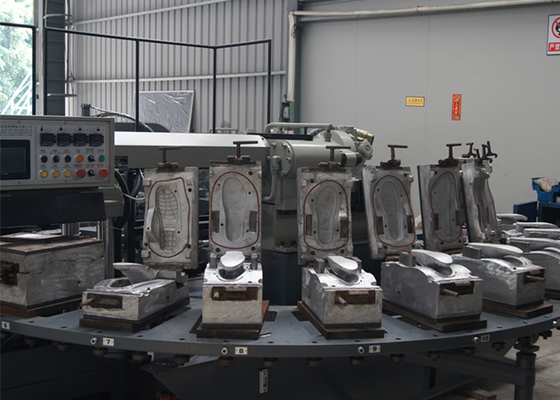

7. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.
8. Specially designed, the oil pressure circuit board is simple in structure.
| Machine Mini Plastic Slipper Specifications | |||
| Machine model | JL-108 | ||
| Mould-clamping Unit | |||
| Work station | 12,16,20,24,30 | ||
| Clamping force | TON | 80 | |
| Opening stroke | MM | 210 | |
| Mould dimension | MM | 600*280 | |
| Height of injection nozzle | MM | 280 | |
| Injection Unit | |||
| Injector | SET | 1 | |
| Screw diameter | MM | 60/65/70 | |
| Screw L/D ratio | L/D | 20 | |
| Max.injection volume | cm3 | 650-1000 | |
| Injection speed | Cm/s | 10 | |
| Screw rotation speed | R.P.M | 0-200 | |
| Electricity Consumption | Normal | Servo | |
| Heating power of injector | KW | 7 | 7 |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 |
| Total power | KW | 25.5 | 30.2 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 15-20 | 7-10 |
| Dimension and Weight | 24 Stations | ||
| Machine dimension | (L*W*H)MM | 4600*3600*2300 | |
| Machine weight | KGS | 6000 | |
| *Note:Above data only for reference. | |||
we have more than 30 models of machines depends on shoe material and type, may i know what kind of shoes you want
to make? you can sent me your shoe samples for reference, it will be great for give you right machine information.
