| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE,SGS |
| Model Number: | JL-198-6S |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Slipper Making Machine | Suitable Material: | EVA |
|---|---|---|---|
| Workers: | 1-2 People | Production Capacity: | 100-120 Pairs/hour |
| Color: | One Color | Feature: | Direct Injection Machine |
| High Light: | slipper manufacturing machine,slipper chappal machine,Shoes Making Machine 6 Stations |
||

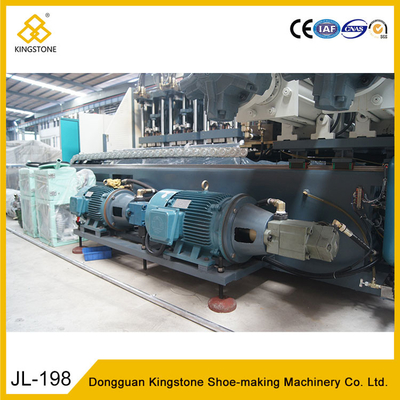

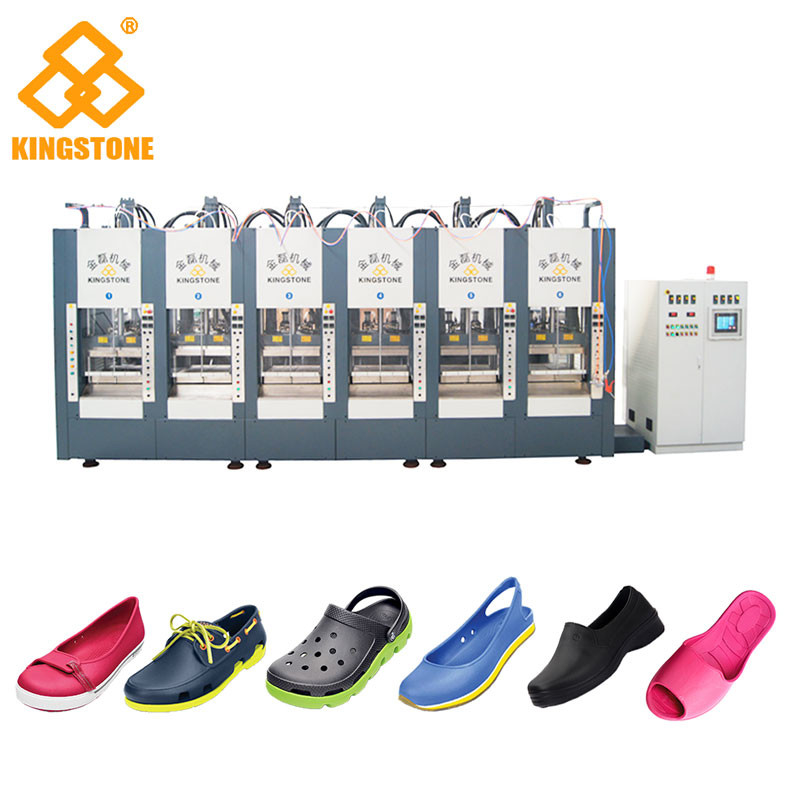

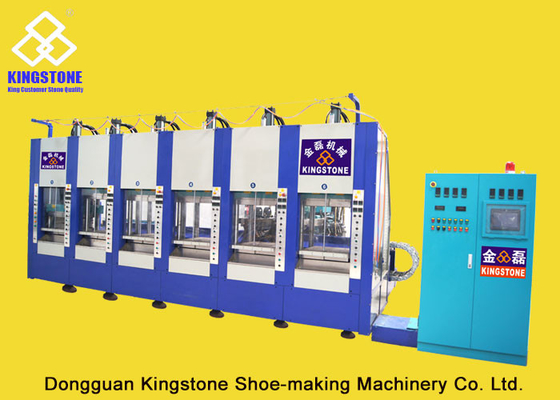

Automatic EVA Slipper Garden Shoes Making Machine with 6 Stations
EVA shoes production line.jpg.pdf
Features:
1. The machine can produce slipper with eva foam material.
2. The injection system is optimized by a unique screw design with precise temperature control.
3. Injection volume is sufficient to meet the production with multi-cavity molds.
4. Can make with servo motor system, it selected by customer.
5. The mold open stroke is long to make collecting parts and cleaning mold easily.
5. There are independent temperature control units for up and down mold plates in each mold-holder.
The temperature of each mold is controlled with high precision to produce parts with stable quality.
Specifications:
| Machine model | JL-198-6S | |
| Mould-clamping Unit | ||
| Work station | 6 | |
| Clamping force | TON | 190 |
| Mould-holder dimensions | MM | 330*600*2 |
| Mould height | MM | 100-250 |
| Opening stroke | MM | 350 |
| Injection Unit | ||
| Injector | SET | 2 |
| Screw diameter | MM | 60/65 |
| Max.injection volume | cm3 | 950 |
| Injection pressure | kg/cm2 | 1000 |
| Screw rotation speed | R.P.M | 0-165 |
| Electricity Consumption | ||
| Heating power of injector | KW |
13
|
| Hydraulic unit motor | KW | 33.5 |
| Heating board of mold | KW |
75
|
| Total electric consumption | KW | 121.5 |
| Temperature control | Section |
4
|
| Dimension and Weight | ||
| Machine dimension(L*W*H) | M | 9*4.7*3 |
| Machine weight | TONS | 23 |
| *Note:Above data only for reference. | ||
Finished products:
1. EVA Slipper, sandals, flip flops, boots, soles
