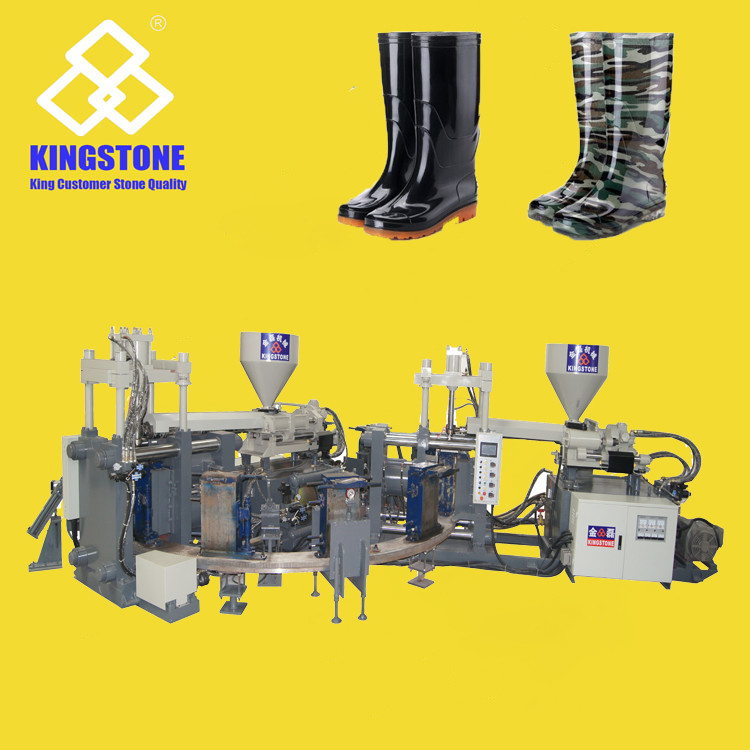

Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener

Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener

  • Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener
  • Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener
  • Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener
  • Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener
Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener
Product Details:
Place of Origin: Dongguan City, China
Brand Name: Kingstone
Certification: CE, SGS
Model Number: JL-288-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 25-45 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Features: Recycle, High Quality Type: Rotary Type
Workstations: 12 Stations Output: 70-90 Pairs/hour
Color: Two Color Products: Rain Boots, Gumboots
Name: Recyclable Boot Making Machine
High Light:

Recyclable PVC Gumboots Making Machine

,

Recyclable PVC Boot Making Machine

,

Gumboots Making Machine 12 Station



Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener





Gumboots production line.jpg.pdf



Recyclable Boot Making Machine

 What we can supply for you?

1. The whole production line for making shoes, including machine, mold, material;
2. The advice on Factory building, factory management, production & package for shoes, layout;
3. The service of machine oepration and shoes production;
4. The in-time after-sales service;

5. The turn table may run reversibly in case of emergency to eliminate the abnormality and upkeep the safety operation.





Recyclable  Boot Making Machine Characteristic
Machine model JL-288 JL-288-2C
Mould-clamping Unit
Work station   12,16 12,16
Clamping force TON 220 220
Opening stroke MM 210 350
Mould dimension MM 420x320 650*260
Height of injection nozzle MM 280 650
Injection Unit
Injector SET 1 2
Screw diameter MM 90/95 95/90,85/80
Screw L/D ratio L/D 19 19
Max.injection volume cm3 1500-1700 1500-1700,800-950
Injection speed Cm/s 520 520
Screw rotation speed R.P.M 0-200 0-200
Electricity Consumption
Heating power of injector KW 7 7*2
Hydraulic unit motor KW 22.5 22.5,18.5
Total electric consumption KW 29.5 55
Temperature control Section 4 4*2
Dimension and Weight
Machine dimension (L*W*H)MM 5100*4900*2550 7600*4900*2550
Machine weight KGS 11000 18000
*Note:Above data only for reference.

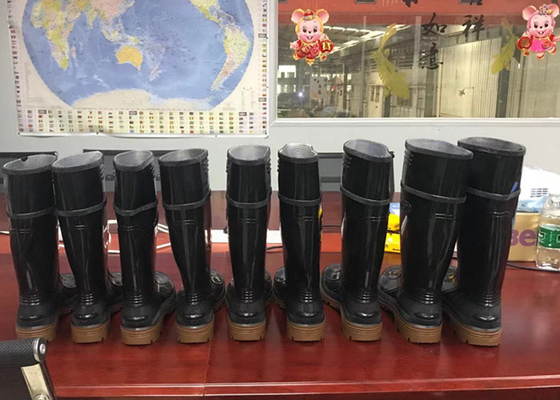

Samples:
Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener 0





Recyclable  Boot Making Machine Production Process



Below is the process for produce full shoes, easy operate.

It need 1-3 people for the full process.





Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener 1





Payment Terms



1. Negotiated, 30% T/T down payment , balance shall be paid before shipment.

2. T/T, Westem Union, PayPal, Escow, MoneyGram.





Machine Production Time



25-45 days after confirm deposit.





Packing



Professional export package, plastic film packing, or Wooden case packing.




Shipping



By Sea, One Container for one machine





Delivery Terms



As per request: EXW, FOB, CIF for your option;




Guarantee



2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.



Recyclable PVC Gumboots/ Boot Making Machine 12 Station With Automatic Opener 2
