| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-128 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Features: | For Short Height Boots, Slipper, Sandals | Type: | Injection Moulding Machine |
|---|---|---|---|
| Products: | Short Height Boots | Material: | Pvc |
| Output: | 110-150 Pairs/hour | Advantages: | Automatic, Easy Operated, High Production Capacity |
| High Light: | boot making equipment,shoe making production line,Gum Boots Injection Machine |
||

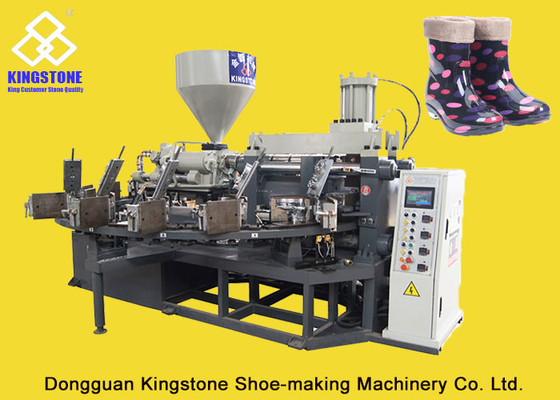

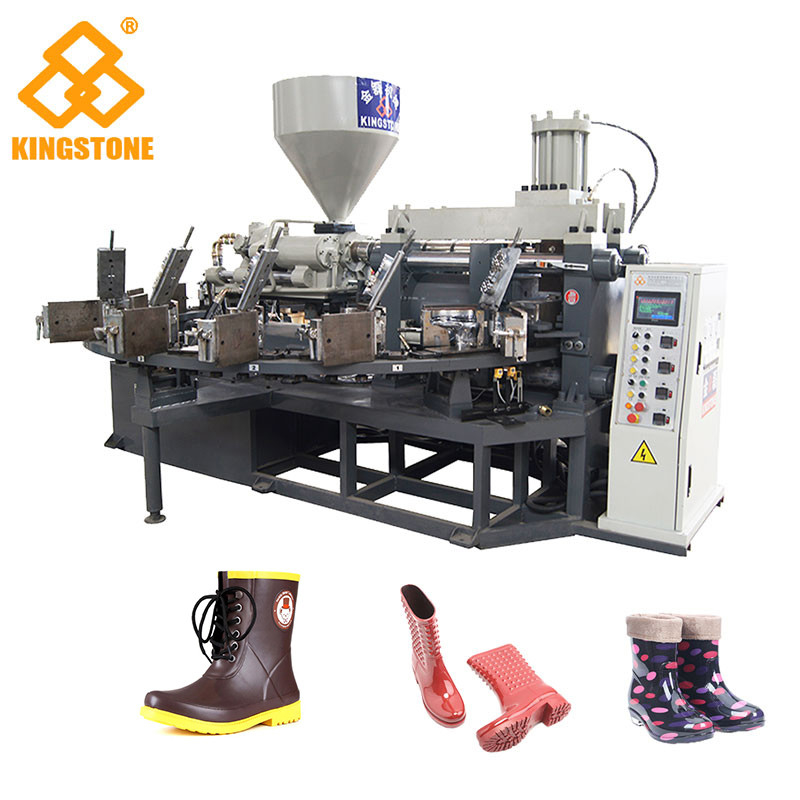

PVC Short Gum boots Injection Machine , Automatic Safety Shoe Making Machine JL-128
Gumboots production line.jpg.pdf
Features:
1. This machine mainly produce single color crystal shoes with material of pvc.
2. Low power design, save energy.
3. It need 1-2 people to operate, take the shoes from mould.
4. This machine has two kinds, it has rotary srew and vertical screw.
5. It has 12/16/20 stations for choose.
6. It has servo motor for you selected.
Applications:
| Specifications | |||
| Machine model | JL-128 | ||
| Mould-clamping Unit | |||
| Work station | 12,16,20 | ||
| Clamping force | TON | 120-150 | |
| Opening stroke | MM | 210 | |
| Mould dimension | MM | 600*280 | |
| Height of injection nozzle | MM | 280 | |

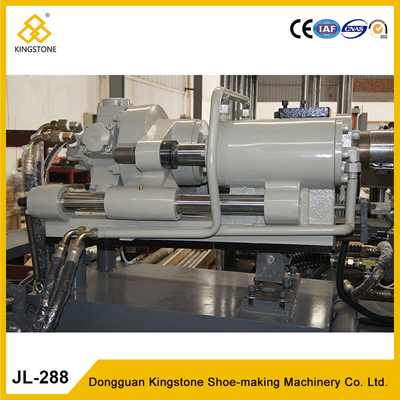

| Injection Unit | |||
| Injector | SET | 1 | |
| Screw diameter | MM | 65/70/75 | |
| Screw L/D ratio | L/D | 20 | |
| Max.injection volume | cm3 | 650-1000 | |
| Injection speed | Cm/s | 10 | |
| Screw rotation speed | R.P.M | 0-200 | |
| Electricity Consumption | Normal | Servo | |
| Heating power of injector | KW | 7 | 7 |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 |
| Total power | KW | 25.5 | 30.2 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 15-20 | 7-10 |
| Dimension and Weight | 20 Stations | ||
| Machine dimension | (L*W*H)MM | 4600*3700*2500 | |
| Machine weight | KGS | 6500 | |
| *Note:Above data only for reference. | |||
Why Choose us?
1. We are true factory, our factory is located in Dongguan city, China.
2. We can manufacturing machine, mould, material as your requriements.
3. We can provide more ideas on the shoes making, and shoe design.
4. We can provide in door service for the machine working.
5. We are the good partner for you.
The Finished Products:
It can produce women flat shoes, sandals, short boots.
