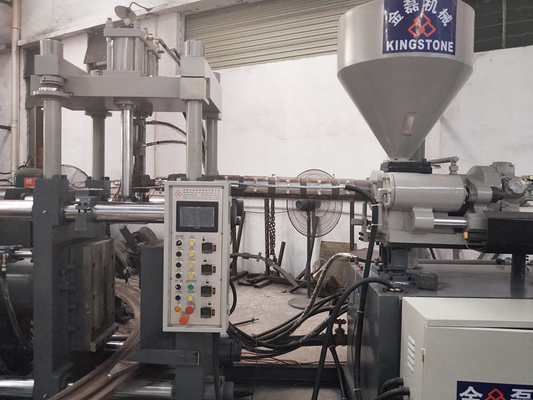

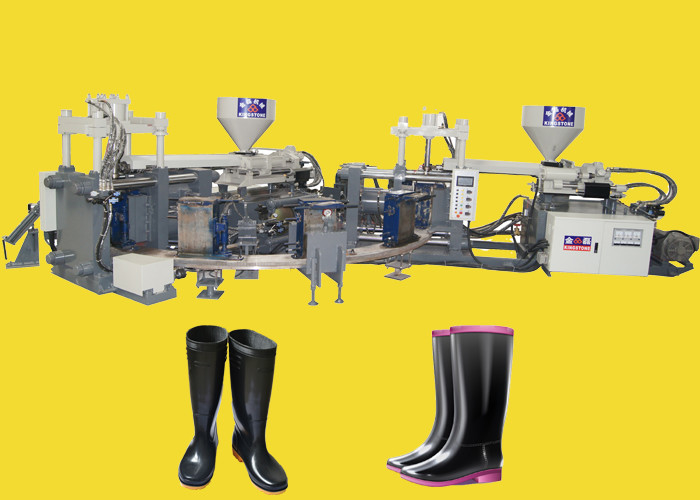

Height Gumboots Boot Making Machine PVC Material

Height Gumboots Boot Making Machine PVC Material

  • Height Gumboots Boot Making Machine PVC Material
  • Height Gumboots Boot Making Machine PVC Material
  • Height Gumboots Boot Making Machine PVC Material
  • Height Gumboots Boot Making Machine PVC Material
  • Height Gumboots Boot Making Machine PVC Material
Height Gumboots Boot Making Machine PVC Material
Product Details:
Place of Origin: Dongguan City, China
Brand Name: Kingstone
Certification: CE,SGS
Model Number: JL-288-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 25-45 DAYS
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Type: Rotary Table Workstations: 12 Stations
Workers: 1-2 People Output: 100-120 Pairs/hour
Size: 8.6*4.5*2.8m Gurantee: 2 Years, The Longest In China
High Light:

PVC Material Boot Making Machine

,

PVC Material Gumboots Making Machine

,

Height Boot Making Machine



Height Boot Making Machine PVC Material Gumboots Making Machine





EVA shoes production line.jpg.pdf





Description:



This machine is specialzied in producing rain boot, gumboot, water boot, long boot, short boot, galoshes with eva materials.




Features:


1. It use the foam material, such as EVA.



2. It used to produce eva slipper, sandals, boots.



3. Full automatic, PLC control, easy operated.



4. 2-3 people operate, save labor than traditional shoes making.



5. Rapid mould opening.





Specifications
Machine model JL-288-2S
Mould-clamping Unit
Work station   12
Clamping force TON 190
Mould-holder dimensions MM 330*600*2
Mould height MM 100-250
Opening stroke MM 350
Injection Unit
Injector SET 1
Screw diameter MM 60/65
Max.injection volume cm3 950
Injection pressure kg/cm2 1000
Screw rotation speed R.P.M 0-165
Electricity Consumption
Heating power of injector KW 13
Hydraulic unit motor KW 33.5
Heating board of mold KW 49
Total electric consumption KW 95.5
Temperature control Section 4
Dimension and Weight
Machine dimension(L*W*H) M 5*4.7*3
Machine weight TONS 10
*Note:Above data only for reference.









After-sales Service


1. We will provide the shipping time to you, and you can get the arrive time for the container;

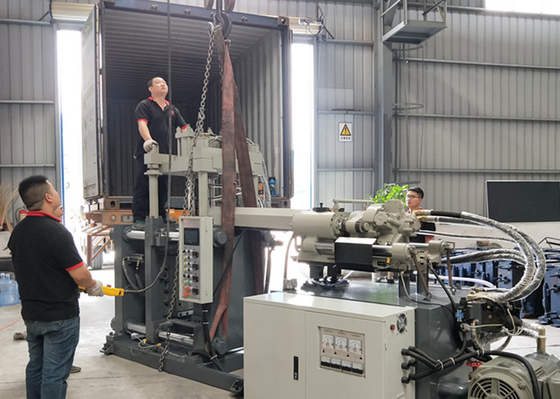

2. After the machine arrived your factory, the engineer will help to install machine;



3. Our engineer will teach your workers to work the machine and make shoes.



4. He will stay some days to teach your engineer work the machine.



5. If you has any questions for the machine and shoe design, we will reply you asap.





Samples

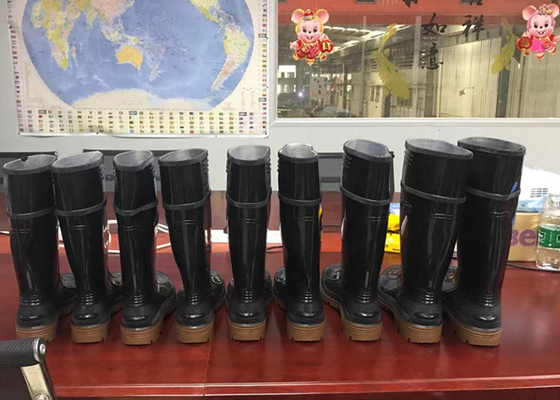

This machine can produce PVC boots.

Height Gumboots Boot Making Machine PVC Material 0
