| Place of Origin: | Guangdong, China |
| Brand Name: | Kingstone |
| Certification: | SGS,ROHS,CE |
| Model Number: | JL-208 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45days |
| Supply Ability: | 50 SETS PER MONTH |
| Brand: | Kingstone | Material For Use: | PVC/TPR/TPU/TR |
|---|---|---|---|
| Color: | 2 Colors | Servo Motor: | Optional |
| High Light: | One Color Shoe Sole Making Machine,Static Shoe Sole Making Machine,60kw shoe sole moulding machine |
||

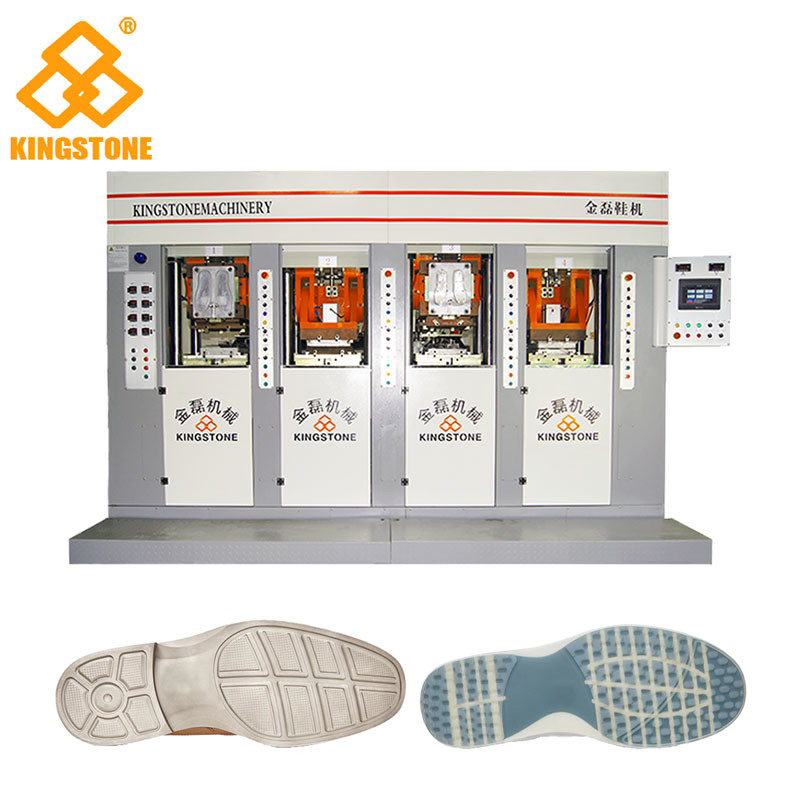

Static machine for the production of two-colour, multi-colour soles and soles with inserts, in compact and expanded thermoplastics
Shoes sole production line.jpg.pdf
>> Features
Great functional and production reliability as a result of:
1. Fast and strong toggle clamp presses
2. Injectors with specific screws having profiles designed for different material types
3. High production rate as a result of the effective press+injectors combination and easy work-parameter setup
4. Compact and immediately accessible layout

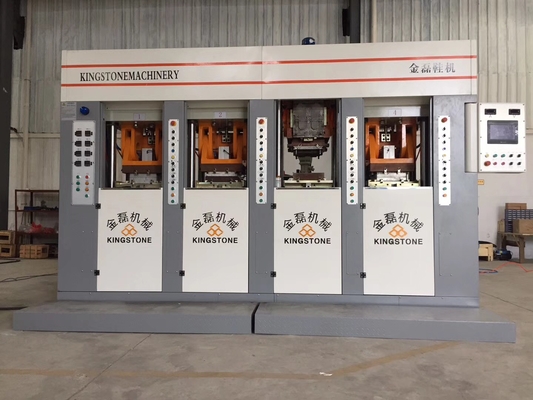

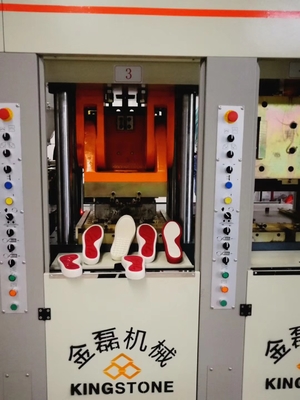

>> Machine Photos
>> Specifications
| Specifications | ||||||
| Machine model | JL-208-2S | JL-208-3S | JL-208-4S | JL-208-6S | ||
| Mould-clamping Unit | ||||||
| Work station | 2 | 3 | 4 | 6 | ||
| Clamping force | TON | 220 | 220 | 220 | 220 | |
| Opening stroke | MM | 350 | 350 | 350 | 350 | |
| Mould dimension | MM | 300*400 | 300*400 | 300*400 | 300*400 | |
| Mould height | MM | 100-200/150-250 | 100-200/150-250 | 100-200/150-250 | 100-200/150-250 | |
| Rotating head | . | 0°-90° | 0°-90° | 0°-90° | 0°-90° | |
| Injection Unit | ||||||
| Injector | SET | 2/4 | 2 | 2 | 2 | |
| Screw diameter | MM | 60/65/70 | 60/65/70 | 60/65/70 | 60/65/70 | |
| Screw L/D ratio | L/D | 22 | 22 | 22 | 22 | |
| Max.injection volume | cm3 | 650-1000 | 650-1000 | 650-1000 | 650-1000 | |
| Injection pressure | Kg/cm² | 650 | 650 | 650 | 650 | |
| Screw rotation speed | R.P.M | 0-185 | 0-185 | 0-185 | 0-185 | |
| Electricity Consumption | ||||||
| Heating power of injector | KW | 11*2/11*4 | 11*2 | 11*2 | 11*2 | |
| Hydraulic unit motor | KW | 22.5 | 22.5+13 | 22.5+13 | 22.5+13 | |
| Total electric consumption | KW | 50/70 | 60 | 60 | 60 | |
| Temperature control | Section | 4 | 4 | 4 | 4 | |
| Dimension and Weight | ||||||
| Machine dimension(L*W*H) | M | 3.0*3.5*2.8 | 4.6*3.5*2.8 | 6.3*3.5*2.8 | 9.6*3.5*2.8 | |
| Machine weight | TONS | 11/12 | 14.5 | 18 | 24 | |
| *Note:Above data only for reference. | ||||||
