| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE,SGS |
| Model Number: | JL-168 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | One container, standard export package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 50 SETS PER MONTH |
| Material: | Steel | Workstations: | 6 Stations |
|---|---|---|---|
| Workers Need: | 2 People | Gurantee: | 2 Years, The Longest In China |
| Suitable Material: | Rubber | Delivery: | 25 Days |
| Production: | 80-120 Pairs/hour | Operation: | Automatic |
| High Light: | rubber shoe sole making machine,rubber sole machine,Two Layer Shoe Mould Making Machine |
||

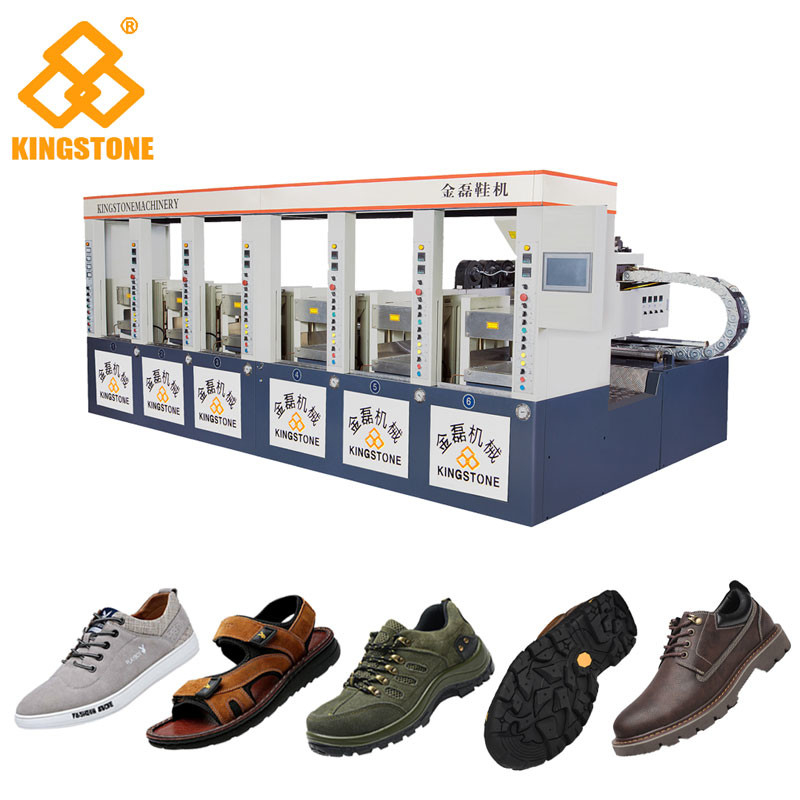

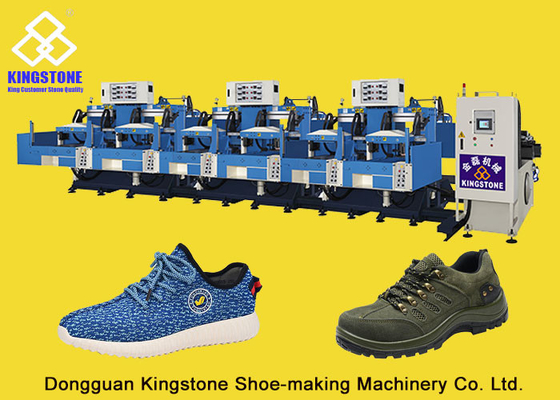

6 Stations Two Layer Rubber Sole Making Machine for Safety Shoes / Sports Shoes JL-168
Features:
1. For produce one color and two color rubber soles.
2. Low operation height proper height of control platform fits the body engineering.
3. Automatically open-mould structure, easier to clean the mould safer to get out of finished product.
4. The data is controlled by PLC, make the energy precisely controlled.
5. Few workers, high production, save energy.
| Specifications | ||
| Machine model | JL-168 | |
| Mould-clamping Unit | ||
| Work station | 6 | |
| Total clamping force | TON | 150 |
| Mould-holder dimensions | MM | 450*500 |
| Mould space | MM | 180 |
| Electricity Consumption | ||
| Heating mode | Steam,Conduction oil, Electric Heating |
|
| Hydraulic unit motor | KW | 15 |
| Dimension and Weight | ||
| Machine dimension | (L*W*H)MM | 7800x3100x2500(mm) |
| Machine weight | KGS | 14000 |
| *Note:Above data only for reference. | ||
Machine Production Time
25-45 days after confirm deposit.
Guarantee
2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.
Samples
The rubber sole can widely use in sandals, leisure shoes, canvas shoes, etc.
