| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE,SGS |
| Model Number: | JL-168S |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | One container, standard export package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Rubber Sole Injection Moulding Machine | Workstations: | 6 Stations |
|---|---|---|---|
| Injector: | 1 Set | Gurantee: | 2 Years, The Longest In China |
| Material: | Rubber | Color: | One Color |
| Production: | 90-150 Pairs/hour | Size: | 5.3*3.5*2.6m |
| Feature: | Good Close Mould Design | ||
| High Light: | rubber shoe sole making machine,rubber sole machine,Sole Making Machine Mono Color |
||

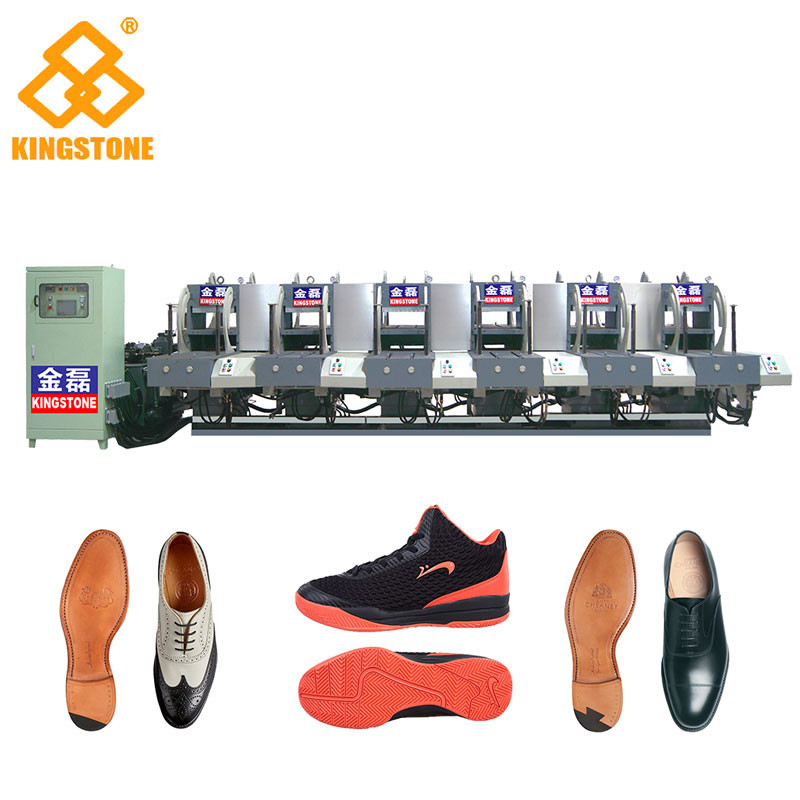

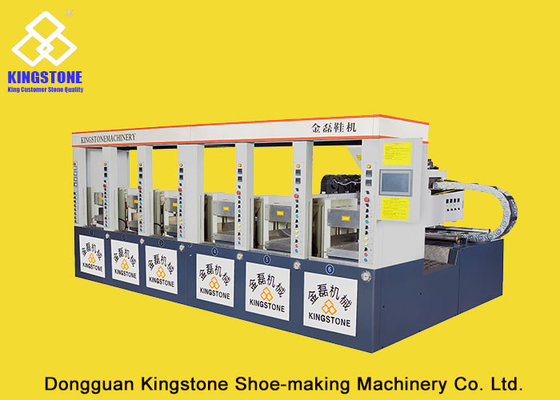

Full Automatic One Color Rubber Sole Injection Moulding Machine High Quality Energy-saving JL-168
Descriptions:
The machine is used to produce rubber soles, standard is 6 stations, it has 2/3/4 stations for choose.
The soles can widely use in sports shoes, leisure shoes, leather shoes, clambling shoes, safety shoes, etc.
The comparison of this machine with the traditional vulcanized rubber (with the weight of 500g per pair of sole calculated )
Energy saving: ultra low power consumption, the average power consumption per pair of sole is about RMB0.3 /pair, and the servo system is about RMB0.2 /pair.
Environmental protection: Use granular materials, no dust, all electric heating, without the need for traditional heat or steam heating;
High output: the daily output of a single pair of moulds is 300-400 pairs, it is twice of the traditional vulcanized rubber.
High quality: the product has the advantages of high brightness of TP and TPU, and has the advantages of high wear resistance, cold resistance, heat resistance and skid resistance of traditional vulcanized rubber, and its density is only 0.9-1.06.
Low loss: rubber particles at room temperature, easy to store, die of plastic products, no burr, low defect rate, all the normal material loss is 2%-3% (head and defect rate);
Labor saving: the production of ten thousand pairs of new rubber sole needs only 30 workers, it is 1/3-1/4 workers of the traditional vulcanized rubber machine for the production of the same quantity.
Features:
1. The shift mechanism adopts the computer digital control of gear rotation, and good moving stability, and accurate positioning .
2. The mode of open and locking mechanism adopts the unique special structure, it has large locking mould and clamping force, so that the product has no extra edge.
3. The mould turning mechanism is safe and reliable, and has the advantages of taking mould, convenient conversion and large operating space.
4. Machine design is reasonable, easy to install, small area.
5. In accordance with the requirements of humanized design, simple operation, automatic opening of the mode, saving labor costs;
6. Using intelligent computer program and PLC program control, accurate measurement.
Specifications:
| Machine model | JL-168S-6S | |
| Work station | 3/6 | |
| No. of screw and barrel | barrel | 1 |
| Screw diameter | mm | 60 |
| Injection pressure | Bar/cm2 | 1200 |
| Injection rate | g/s | 0-200 |
| Speed of screw | r/min | 0-120 |
| Clamping force | kn | 1200 |
| Max. space of mould | mm | 450*380*220 |
| Heating Power | Kw | 40 |
| Power of motor | Kw | 18.5 |
| System pressure | Mpa | 14 |
| Machine dimension L*W*H | M | 5.3*3.3*2.1 |
| Machine weight | Ton | 15.8 |
| *Note:Above data only for reference. | ||
Finished Products
