| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-108 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package, One container |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | D/A, D/P, L/C, T/T |
| Supply Ability: | 50 SET PER MONTH |
| Features: | With Air Blowing System | Material: | PVC, PCU, TPR |
|---|---|---|---|
| Size: | 4.6*3.6*2.3m | Production Capacity: | 120-200 Pairs/hour |
| Gurantee Period: | 2 Years, The Longest In China | Work Stations: | 12/16/20/24/30 Stations For Choose |
| High Light: | slipper manufacturing machine,slipper chappal machine,Servo System PVC Shoes Making Machine |
||

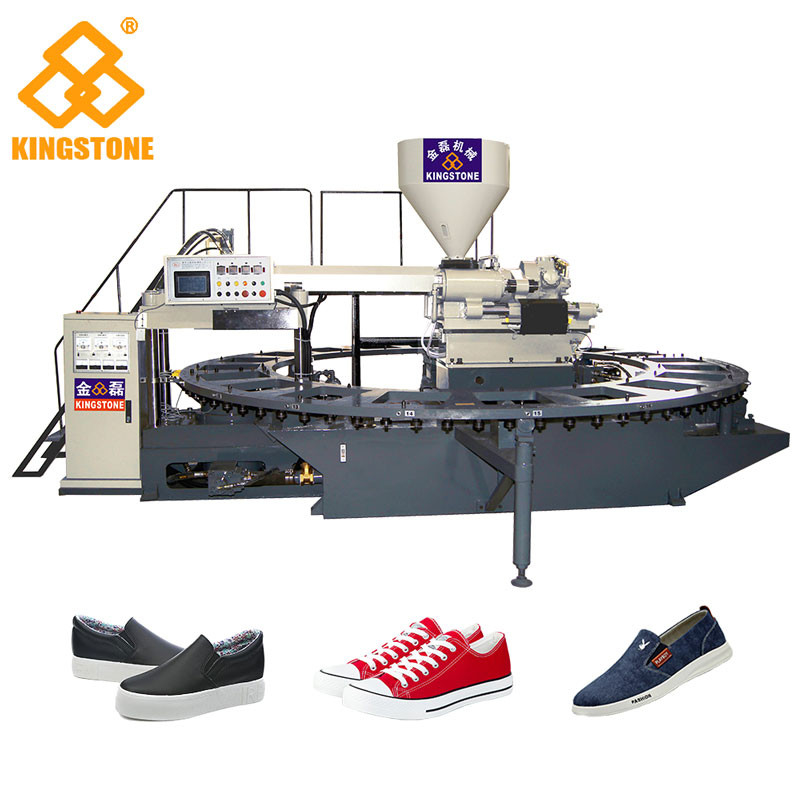

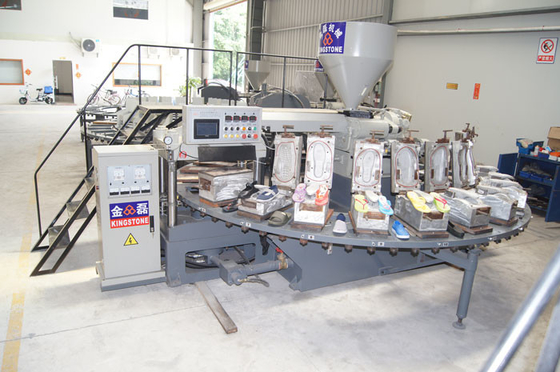

20 Stations Servo System PVC shoes making machine for sport shoes lasure shoes
JL-108
PVC slippers production line.jpg.pdf
Features:
1. This is our most popular machine in 2017.
2. It is the best machine for making PVC slippers.
3. It can make various kinds of PVC slippers for gentlemen,ladies and childrens.
4. This machine's operation is full automatic and easy.
5. Machine's control is by PLC touch screen system.
Usage of our PVC slipper machine:
| Specifications | |||
| Machine model | JL-108 | ||
| Mould-clamping Unit | |||
| Work station | 12,16,20,24,30 | ||
| Clamping force | TON | 80 | |
| Opening stroke | MM | 210 | |
| Mould dimension | MM | 600*280 | |
| Height of injection nozzle | MM | 280 | |
| Injection Unit | |||
| Injector | SET | 1 | |
| Screw diameter | MM | 60/65/70 | |
| Screw L/D ratio | L/D | 20 | |
| Max.injection volume | cm3 | 650-1000 | |
| Injection speed | Cm/s | 10 | |
| Screw rotation speed | R.P.M | 0-200 | |
| Electricity Consumption | Normal | Servo | |
| Heating power of injector | KW | 7 | 7 |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 |
| Total power | KW | 25.5 | 30.2 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 15-20 | 7-10 |
| Dimension and Weight | 24 Stations | ||
| Machine dimension | (L*W*H)MM | 4600*3600*2300 | |
| Machine weight | KGS | 6000 | |
| *Note:Above data only for reference. | |||
