| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE,SGS |
| Model Number: | JL-258 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Rotary Type | Capacity: | 260-330 Pairs/hour |
|---|---|---|---|
| Workers Need: | 1-2 People | Gurantee: | 2 Years, The Longest In China |
| Size: | 6.2*3.6*2.5m | Color: | One Color Sole |
| High Light: | automatic injection moulding machine,pvc mould making machine,PVC Shoes Making Machine Single Color |
||

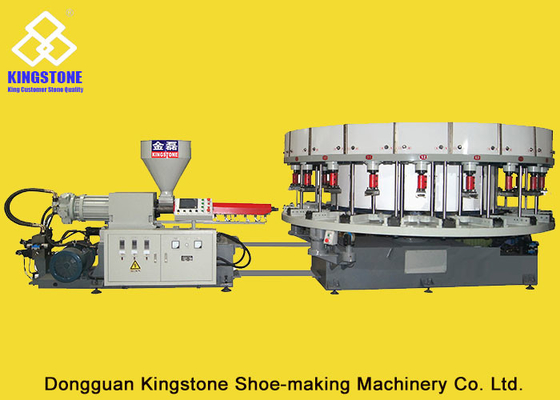

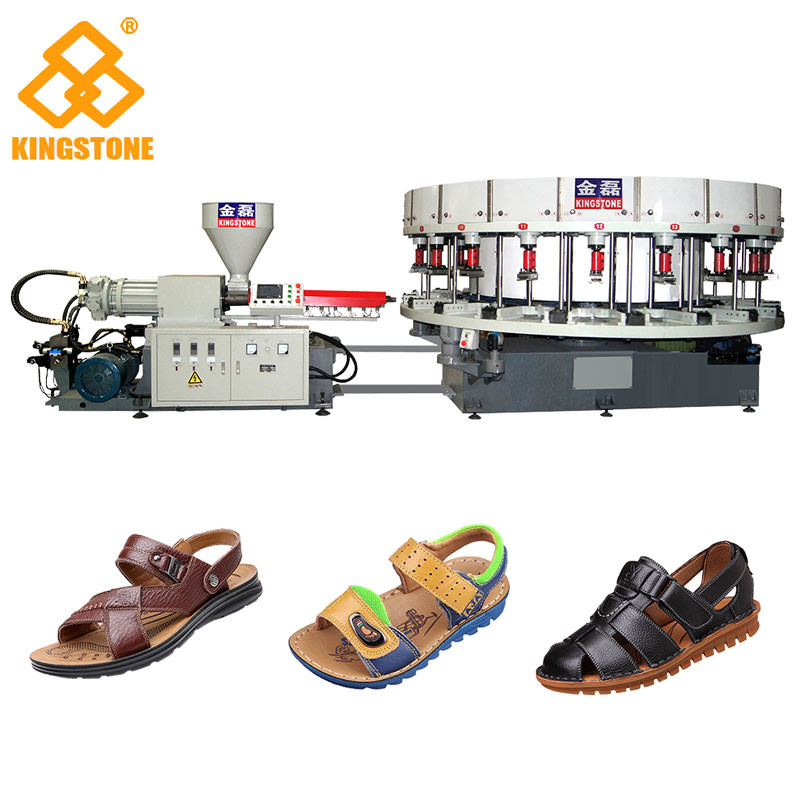

Automatic 1 Color PVC Direct Injection Shoes Machinery for Sports Shoes JL-258
DIP canvas shoe sole production line.jpg.pdf
This machine have the newest technology,it can inject the sole with the upper directly.
That means if you want to make sports shoes,you junst need only one machine.
Features:
1. This machine can make sports shoes for man,woman and childrens.
2. It can use 20 moulds in one machine at same time.
3. Machine control is full automatic.
4. Two color machine can make two color sports shoes.
5. This machine can load into a 40 feet container.
What is my function?
Professional specification of sports shoes machine:
| Specifications | ||
| Machine model | Unit | JL-258 |
| Mould-clamping Unit | ||
| Raw material | PVC/TPR | |
| Work stations | 12/16/20/24 | |
| Shoe last trip | MM | 60 |
| Shoe last height | MM | 210-260 |
| Mould dimension | MM | 340×180×60 |
| Clamping mould style | V | |
| Injection Unit | ||
| Screw diameter | MM | 75 |
| Screw L/D ratio | L/D | 20 |
| Max.injection volume | cm3 | 750 |
| Rotary table pressure | Mpa | 3.0 |
| Plasticizing capacity | g/s | 40 |
| Injection pressure | Mpa | 5.0 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption | ||
| Heating power of injector | KW | 9 |
| Hydraulic unit motor | KW | 15 |
| Total electric consumption | KW | 24 |
| Dimension and Weight | ||
| Machine dimension | (L*W*H)MM | 6150×3350×2000 |
| Machine weight | KGS | 9800 |
| *Note:Above data only for reference. | ||

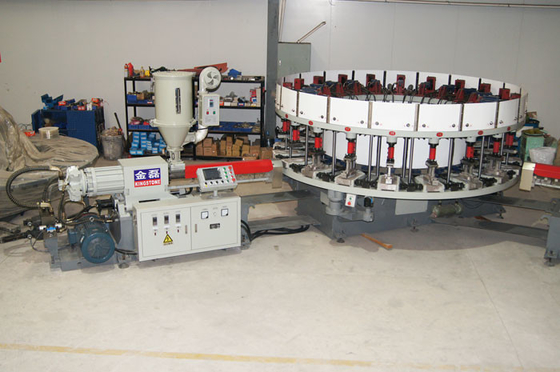

Machine Details:
Our factory:
Dongguan Kingstone Shoe-making Machinery Co., Ltd.
Address: Huarui Industrial Park, Hengjiang Village, Chashan Town, Dongguan City, Guangdong Province, China.
Nearest airport: Guangzhou Baiyun Airport.
Route: Take bus from Guangzhou Baiyun Airport to Dongguan Dongcheng Terminal, it takes about one hour to arrive. Then we will pick you up to our factory.
Tel: 0086-0769-86861088 / 13925550904
Payment Terms
1. Negotiated, 30% T/T down payment , balance shall be paid before shipment.
2. T/T, Westem Union, PayPal, Escow, MoneyGram.
Machine Production Time
25-45 days after confirm deposit.
Packing
Professional export package, plastic film packing, or Wooden case packing.
Shipping
By Sea, One Container for one machine
Delivery Terms
As per request: EXW, FOB, CIF for your option;
Guarantee
2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.
After-sales Service
1. We will send technicians to buyer's factory for installation and training for 5-10days;
2. Our technicians will help you to install machine and works machine;
3. After the machine works well, our technicians will teach your workers how to produce shoes, and how to solve some emergency conditions.
4. After your workers can produce shoes very skilled, then our technicians back.
5. Also you can send your technicians to our factory for training.
6. Any questions can contact us, we will reply you within 24 hours.
