| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-208-4S |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | 4 Stations Sole Moulding Machine | Color: | One / Two Colors |
|---|---|---|---|
| Products: | TR TPU PVC TPR Soles | Delivery Time: | 30 Days |
| Company Type: | Own Factory, True Machine Manufacturer | Auto Open Mold: | YES |
| High Light: | shoe sole mould making machine,pvc sole making machine,Sports Shoe Sole Mould Making Machine |
||

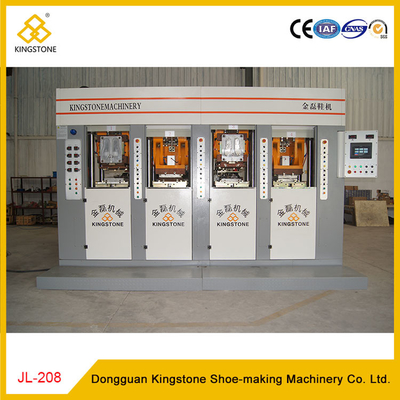

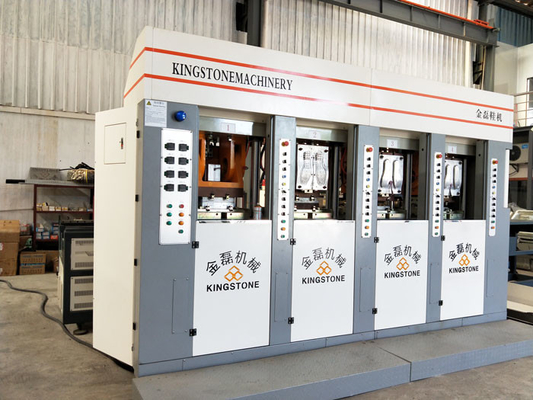

Static One / Two Colors Shoe Sole Making Machine for Sandals Sports Shoes Outsoles
JL-208-2S2G
Shoes sole production line.jpg.pdf
What can we supply for you?
1. Full production line of machine;
2. Full size mold for different design;
3. Different kinds of material for make shoes;
4. Full service from order to after-sales;
5. Advices on factory construction, market hot sales.
Our machine can the following shoes outsoles and other designs too:
About us:
1. We has over 30 years production experiences, the factory is set with 10 years.
2. We has full team to serve for you from order to after-sales service.
3. Our standard is from Taiwan, to make the quality first machine.
4. We has the sales team with 9 years export experiences.
5. We are specilized in the international market.
Specifications:
| Machine model | JL-208-4S | ||||
| Mould-clamping Unit | |||||
| Work station | 4 | ||||
| Clamping force | TON | 220 | |||
| Opening stroke | MM | 350 | |||
| Mould dimension | MM | 300*400 | |||
| Mould height | MM | 100-200/150-250 | |||
| Rotating head | . | 0°-90° | |||
| Injection Unit | |||||
| Injector | SET | 2 | |||
| Screw diameter | MM | 60/65/70 | |||
| Screw L/D ratio | L/D | 22 | |||
| Max.injection volume | cm3 | 650-1000 | |||
| Injection pressure | Kg/cm² | 650 | |||
| Screw rotation speed | R.P.M | 0-200 | |||
| Electricity Consumption | Normal | Servo | |||
| Heating power of injector | KW | 11*2 | 11*2 | ||
| Hydraulic unit motor | KW | 22.5+12.5 | 22.5+13+5.5 | ||
| Total power | KW | 57 | 63 | ||
| Temperature control | Section | 4 | 4 | ||
| Power consumption per hour | Kw/h | 32-37 | 22-27 | ||
| Dimension and Weight | |||||
| Machine dimension(L*W*H) | M | 6.3*3.5*2.8 | |||
| Machine weight | TONS | 18 | |||
