| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-118 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Vertical Type | Material: | PVC, TPR, ABS, TR, TPU, SEBS |
|---|---|---|---|
| Workstations: | 1 Station | Workers: | 1 People |
| Gurantee: | 2 Years, The Longest In China | Output: | 100-150pairs Per Hour |
| Size: | 3.8*2.5*2.9m | Consumption: | 7.5kw/h |
| High Light: | slipper manufacturing machine,flip flop making machine,Two Stations outsole Making Machine |
||

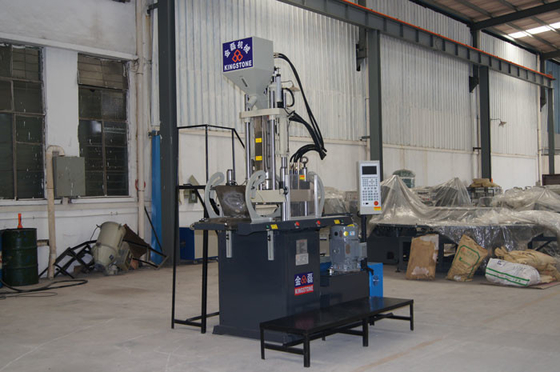

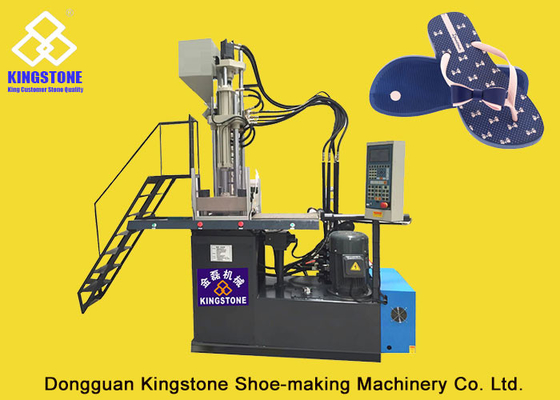

Vertical Two Stations Slipper Straps Making Machine For Flip Flop Soles JL-118
Features:
1. Vertical clamping, vertical injection, suitable for production of general electrical plugs, electronic components& other small insert moldings. With double sliding and rotary table for options, attached with the precision liquid silicone tube.
2. Combine with famous brand pump material feeder, environmental protection, precision and stability.
3. Accurate dosage of silica gel, traces of pigment mixed equally with high viscosity silica gel.
4. Heat shield device, attached with independent temperature controller, fast curing and cross linking of both hydraulic cylinder seal protection. Multi temperature control, multi injection pressure/ speed, back pressure non-stage flexible adjustment, suitable for precision plastic accessories injection.
5.Lower plate fixed/ upper plate movable, provides good positioning for insert in mold. Hydraulic ejector helps taking-off product easily.
6. Single slide/ double slide for options, to improve production efficiency. Can make single color/ multi color products per user's demand.
| Specifications | ||||
| Machine model | JL-118-2S | JL-118-1S | ||
| Mould-clamping Unit | ||||
| Work station | 2 | 1 | ||
| Clamping force | TON | 120 | 120 | |
| Opening stroke | MM | 210 | 210 | |
| Mould dimension | MM | 420x320 | 420x320 | |
| Height of injection nozzle | MM | 280 | 280 | |
| Injection Unit | ||||
| Injector | SET | 1 | 1 | |
| Screw diameter | MM | 50/55/60 | 50/55/60 | |
| Screw L/D ratio | L/D | 20 | 20 | |
| Max.injection volume | cm3 | 450-650 | 450-650 | |
| Screw rotation speed | R.P.M | 0-200 | 0-200 | |
| Electricity Consumption | ||||
| Heating power of injector | KW | 6 | 6 | |
| Hydraulic unit motor | KW | 7.5 | 7.5 | |
| Total electric consumption | KW | 13.5 | 13.5 | |
| Temperature control | Section | 3 | 3 | |
| Dimension and Weight | ||||
| Machine dimension | (L*W*H)MM | 2300*1000*2700 | 1300*1000*2700 | |
| Machine weight | KGS | 3000 | 1800 | |
| *Note:Above data only for reference. | ||||
Machine Details:
Packing
Professional export package, Wooden case packing.
Guarantee
2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.
Our Services:
1.Recommend on needs:
We offer information of product/molds dimensions/operating materials/technical detas/budget,we will make a recommendation and comparison molds to you.
2.We provide OEM service to our customers.
3.Automatic auxiliary customized device.
such as machine spare parts, other auxiliary machines.
4.Online technical support.
In some case, professional technical support will be needed, such as first time parameter or live emergency fault clearing. You can both enquiry on line or email us. Immediate response will be vailable during working hours.
5.Warranty & after-sales service.
We provide 2 year warranty for machine & accessories. We can also provide overseas maintenance support to our customers, our engineer will come to our customer factory for traning.
