| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-288-2C |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Features: | Recycle, High Quality | Delivery: | 20 Days |
|---|---|---|---|
| Power: | 18-22 | Material: | PVC TPR |
| Workers Need: | 2-3 People | Container Loading: | 20' Or 40' |
| High Light: | pvc air blowing injection machine,shoe making production line,Rain Shoes Making Machine |
||

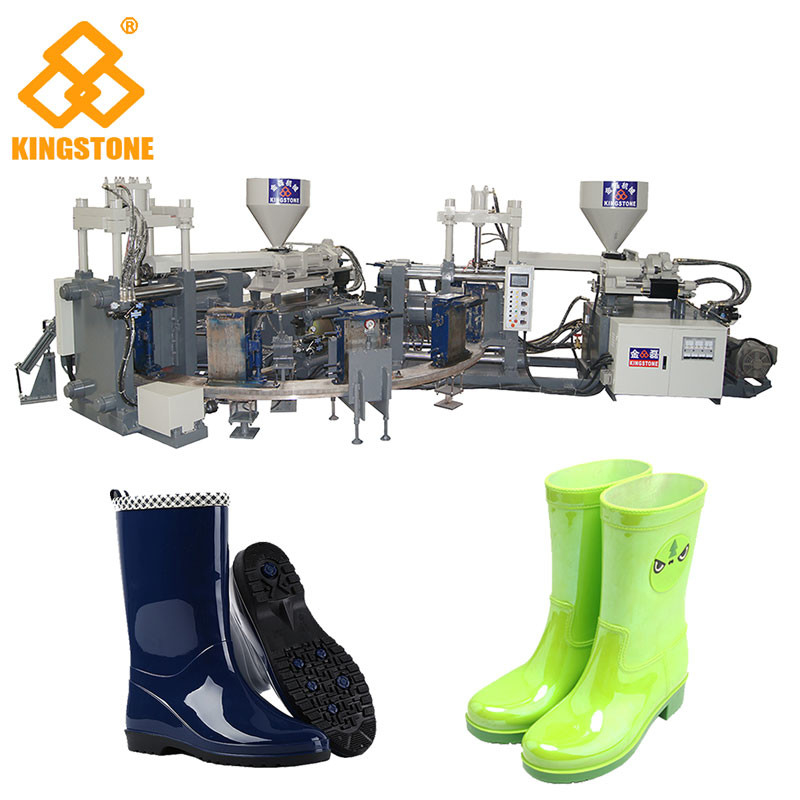

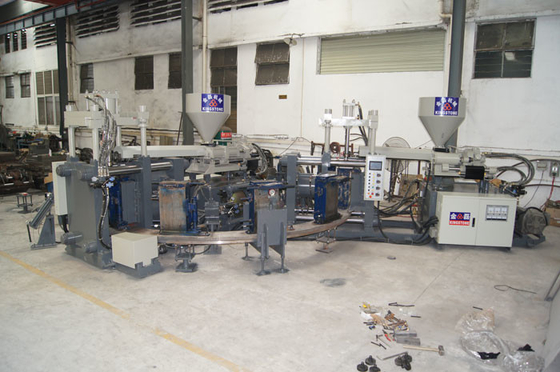

Automatic Rain Shoes Making Machine Production Line , Rotary Injection Molding Machine
Gumboots production line.jpg.pdf
Characteristic:
1. This machine is specially designed to make different types of PVC rain boots and shoes.
2. This machine has the manipulator to operate, the fully automatism. Control, may save the manpower and increase the output
3. Equipped with the full-auto in feed volume control system in each station. Easy to operate and enhance production flexibility.
4. As the feeding is controlled by back pressure, it is capable of adjusting foaming density of raw material.
5. With air blowing system equipped to take out the boots easily.
Usage:
Specifications of our machine:
| Specifications | |||
| Machine model | JL-288 | JL-288-2C | |
| Mould-clamping Unit | |||
| Work station | 12,16 | 12,16 | |
| Clamping force | TON | 220 | 220 |
| Opening stroke | MM | 210 | 350 |
| Mould dimension | MM | 420x320 | 650*260 |
| Height of injection nozzle | MM | 280 | 650 |
| Injection Unit | |||
| Injector | SET | 1 | 2 |
| Screw diameter | MM | 90/95 | 95/90,85/80 |
| Screw L/D ratio | L/D | 19 | 19 |
| Max.injection volume | cm3 | 1500-1700 | 1500-1700,800-950 |
| Injection speed | Cm/s | 520 | 520 |
| Screw rotation speed | R.P.M | 0-200 | 0-200 |
| Electricity Consumption | |||
| Heating power of injector | KW | 7 | 7*2 |
| Hydraulic unit motor | KW | 22.5 | 22.5,18.5 |
| Total electric consumption | KW | 29.5 | 55 |
| Temperature control | Section | 4 | 4*2 |
| Dimension and Weight | |||
| Machine dimension | (L*W*H)MM | 5100*4900*2550 | 7600*4900*2550 |
| Machine weight | KGS | 11000 | 18000 |
| *Note:Above data only for reference. | |||
Production Process
Below is the process for produce full shoes, easy operate.
It need 1-3 people for the full process.
Payment Terms
1. Negotiated, 30% T/T down payment , balance shall be paid before shipment.
2. T/T, Westem Union, PayPal, Escow, MoneyGram.
Machine Production Time
25-45 days after confirm deposit.
Packing
Professional export package, plastic film packing, or Wooden case packing.
Shipping
By Sea, One Container for one machine
Delivery Terms
As per request: EXW, FOB, CIF for your option;
Guarantee
2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.
