| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE,SGS |
| Model Number: | JL-258-2C |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Environm: | Yes | Workstations: | 20 Stations |
|---|---|---|---|
| Gurantee: | 2 Years, The Longest In China | Installed Power: | 35.5kw |
| Electricity Save: | Yes | Operation: | Automatic |
| High Light: | pvc mould making machine,pvc injection moulding machine,PVC Shoes Making Machine 20 Stations |
||

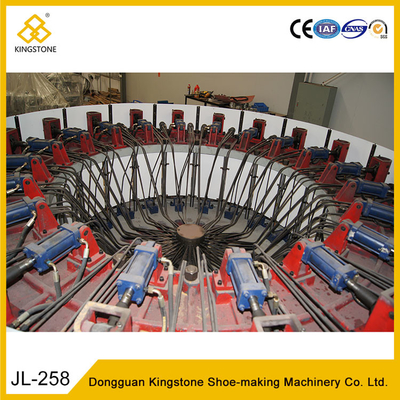

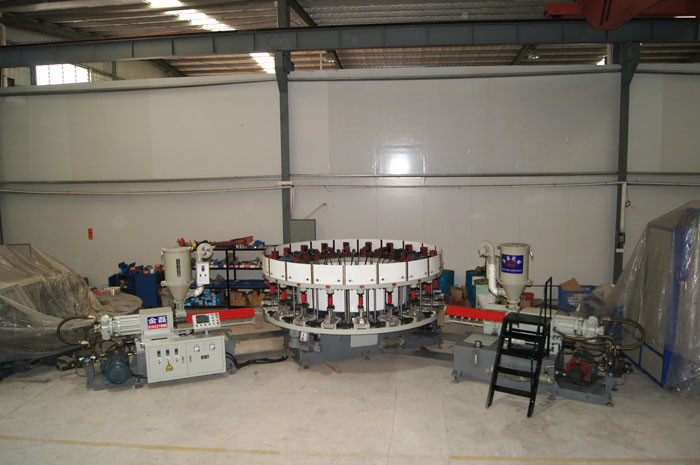

Rotary Double Color Sport Shoes Sole Injection Moulding Machine
JL-258-2C
DIP canvas shoe sole production line.jpg.pdf
Features of this machine:
1. Machine is controlled by full touch screen system from Taiwan.
2. Spare parts of our machine is also imported from Germany,Japan and Taiwan.
3. Machine drived bythe frequency motor,runs stable and low noise.
4. Machine clamping unit is V shape which can supply strong clamping force.
5. Injection speed is very fast,one hour can make around 300 pairs shoes.
| Specifications | ||
| Machine model | Unit | JL-258-2C |
| Mould-clamping Unit | ||
| Raw material | PVC/TPR | |
| Work stations | 12/16/20/24 | |
| Shoe last trip | MM | 60 |
| Shoe last height | MM | 210-260 |
| Mould dimension | MM | 340×180×60 |
| Clamping mould style | V | |
| Injection Unit | ||
| Screw diameter | MM | 75,60 |
| Screw L/D ratio | L/D | 20 |
| Max.injection volume | cm3 | 750,600 |
| Rotary table pressure | Mpa | 3.0 |
| Plasticizing capacity | g/s | 40 |
| Injection pressure | Mpa | 5.0 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption | ||
| Heating power of injector | KW | 9,8 |
| Hydraulic unit motor | KW | 15,11 |
| Total electric consumption | KW | 43 |
| Dimension and Weight | 20 Stations | |
| Machine dimension | (L*W*H)MM | 7450×6150×2000 |
| Machine weight | KGS | 12500 |
| *Note:Above data only for reference. | ||
Samples:
Delivery:
This machine need one 40HQ container, professional package and loading for this machine, to make sure it can arrived your factory safety.
Guarantee
2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.
After-sales Service
1. We will send technicians to buyer's factory for installation and training for 5-10days;
2. Our technicians will help you to install machine and works machine;
3. After the machine works well, our technicians will teach your workers how to produce shoes, and how to solve some emergency conditions.
4. After your workers can produce shoes very skilled, then our technicians back.
5. Also you can send your technicians to our factory for training.
6. Any questions can contact us, we will reply you within 24 hours.
