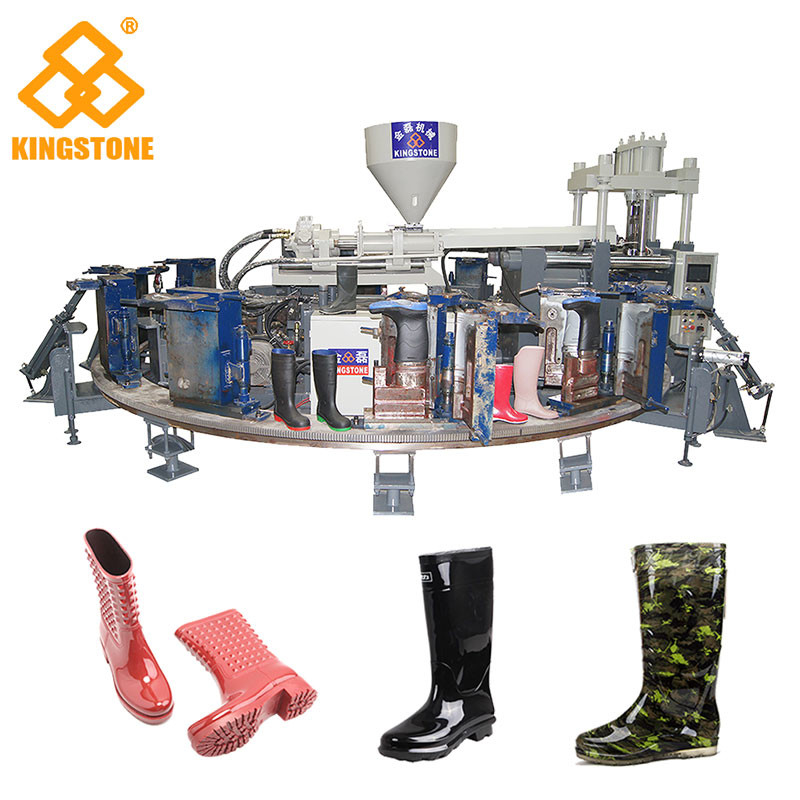

Name: 12 Stations 1/2 Color Boot Injection Molding Machine , Gumboots Making Machine
Brand: Kingstone Shoe-making Machinery Co. Ltd.
SKU: JL-288
Price: 35,650.00 USD
Availability: InStock

Home Products Boot Making Machine

12 Stations 1/2 Color Boot Injection Molding Machine , Gumboots Making Machine

Product Details:

Place of Origin:	Dongguan City, China
Brand Name:	Kingstone
Certification:	CE, SGS
Model Number:	JL-288

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	Standard Export Package
Delivery Time:	25-45 DAYS
Payment Terms:	L/C, T/T, D/A, D/P
Supply Ability:	50 SETS PER MONTH

Contact Now

Detailed Product Description

Model:	JL-288	Color:	Gray And White
Raw Material:	Steel	Size:	6.54.92.5m
Weight:	12tons	Servo Motor:	Can Customized As Your Requirements
Highlight:	boot making equipment , shoe making production line , 2 Color Boot Injection Molding Machine

12 Stations Boot / Sole Injection Molding Machine , Gumboots / Plastic Slipper Making Machine

Gumboots production line.jpg.pdf

Advantages

1. By computer, Electrical box, PLC control---more simple, fast and precision.
2. It could be equipped with air blowing system. --- can produce light weight, particularly the need for reinforced cooling effect.
3. Computerization in analysis and design---the machine is well in stability.
4. Conformed to human engineering in design---it features operational compatibility.
5. It could be equipped with servo system. --- can save 30~40% electricity.

Application:

Specially designated to manufacture all kinds of thermoplastic raw materials, foaming or non-foaming rain boots and shoes in different height.

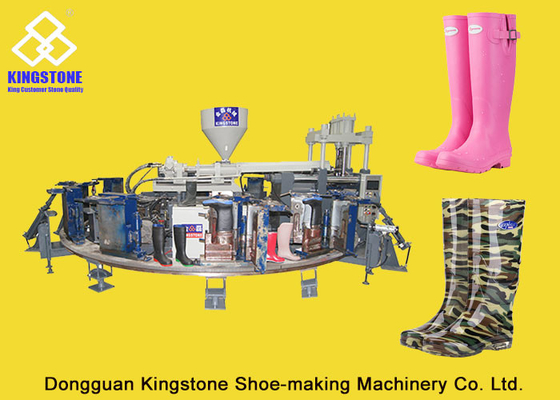

12 Stations 1/2 Color Boot Injection Molding Machine , Gumboots Making Machine 0

Specifications
Machine model	JL-288		JL-288-2C
Mould-clamping Unit
Work station		12,16	12,16
Clamping force	TON	220	220
Opening stroke	MM	210	350
Mould dimension	MM	420x320	650*260
Height of injection nozzle	MM	280	650
Injection Unit
Injector	SET	1	2
Screw diameter	MM	90/95	95/90,85/80
Screw L/D ratio	L/D	19	19
Max.injection volume	cm3	1500-1700	1500-1700,800-950
Injection speed	Cm/s	520	520
Screw rotation speed	R.P.M	0-200	0-200
Electricity Consumption
Heating power of injector	KW	7	7*2
Hydraulic unit motor	KW	22.5	22.5,18.5
Total electric consumption	KW	29.5	55
Temperature control	Section	4	4*2
Dimension and Weight
Machine dimension	(LWH)MM	510049002550	760049002550
Machine weight	KGS	11000	18000
*Note:Above data only for reference.

Samples:

Certificate

CE, SGS, NAGS, CCPIT, etc.

Payment Terms

1. Negotiated, 30% T/T down payment , balance shall be paid before shipment.
2. T/T, Westem Union, PayPal, Escow, MoneyGram.

Machine Production Time

25-45 days after confirm deposit.

Packing

Professional export package, plastic film packing, or Wooden case packing.

Shipping

By Sea, One Container for one machine

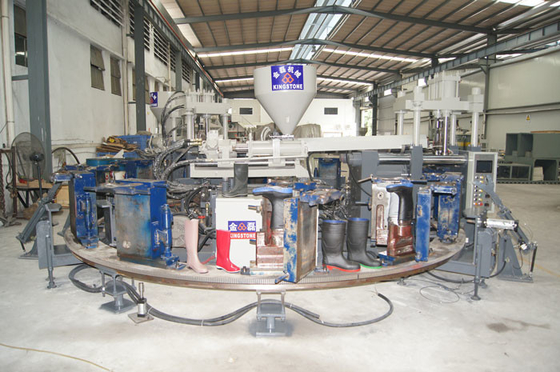

Machine pics:

12 Stations 1/2 Color Boot Injection Molding Machine , Gumboots Making Machine 2
