| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-108 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package, One container |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union |
| Supply Ability: | 50 SET PER MONTH |
| Automatic: | Yes | Servo System: | Option |
|---|---|---|---|
| Brand Name: | Kingstone | Output: | 100-200 Pairs/hour |
| Gurantee: | 2 Years, The Longest Time In China | Workstations: | Standard 20 Stations, Can Customized |
| High Light: | slipper chappal machine,flip flop making machine,200 pairs/h slipper making Machine |
||

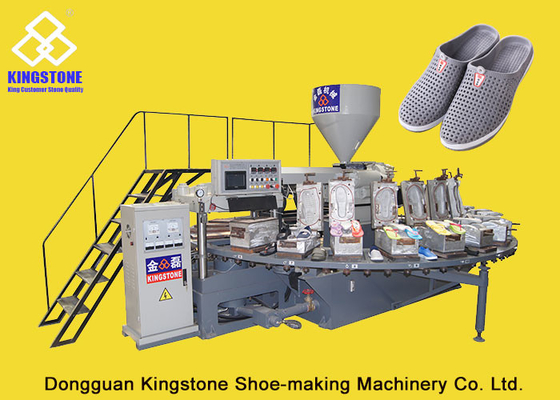

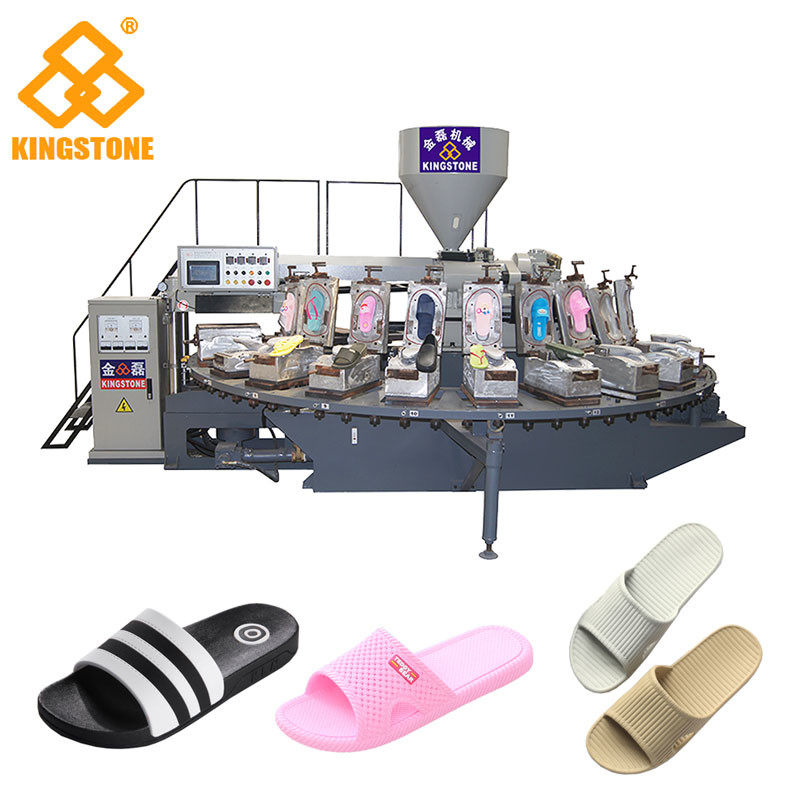

Single Color Flip Flop Slippers Making Machine with 12/16/20/24/30 Stations JL-108
PVC slippers production line.jpg.pdf
Flip Flop Slipper Making Machine for women, men, kids, can make different designs.
Features:

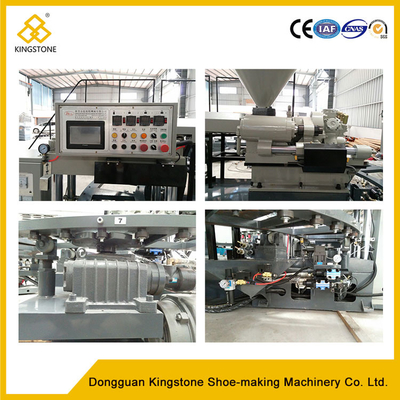

1. By computer, Electrical box, PLC control---more simple, fast and precision.
2. It could be equipped with air blowing system. --- can produce light weight, particularly the need for reinforced cooling effect.
3. Computerization in analysis and design---the machine is well in stability.
4. Conformed to human engineering in design---it features operational compatibility.
5. It could be equipped with servo system. --- can save 30~40% electricity.
6. It could be equipped with cooling system. --- can cooling the mould and extend the mould life.
7. The well-interconnected oil circuit by electric control --- can reduce waiting time, quicken production rate, and promote productivity.
| Specifications | |||
| Machine model | JL-108 | ||
| Mould-clamping Unit | |||
| Work station | 12,16,20,24,30 | ||
| Clamping force | TON | 80 | |
| Opening stroke | MM | 210 | |
| Mould dimension | MM | 600*280 | |
| Height of injection nozzle | MM | 280 | |
| Injection Unit | |||
| Injector | SET | 1 | |
| Screw diameter | MM | 60/65/70 | |
| Screw L/D ratio | L/D | 20 | |
| Max.injection volume | cm3 | 650-1000 | |
| Injection speed | Cm/s | 10 | |
| Screw rotation speed | R.P.M | 0-200 | |
| Electricity Consumption | Normal | Servo | |
| Heating power of injector | KW | 7 | 7 |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 |
| Total power | KW | 25.5 | 30.2 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 15-20 | 7-10 |
| Dimension and Weight | 24 Stations | ||
| Machine dimension | (L*W*H)MM | 4600*3600*2300 | |
| Machine weight | KGS | 6000 | |
| *Note:Above data only for reference. | |||
Payment Terms
1. Negotiated, 30% T/T down payment , balance shall be paid before shipment.
2. T/T, Westem Union, PayPal, Escow, MoneyGram.
Machine Production Time
25-45 days after confirm deposit.
Packing
Professional export package, plastic film packing, or Wooden case packing.
Shipping
By Sea, One Container for one machine
Samples:
