120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine

120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine

  • 120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine
  • 120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine
  • 120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine
120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine
Product Details:
Place of Origin: Dongguan City, China
Brand Name: Kingstone
Certification: CE, SGS
Model Number: JL-108
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiable
Packaging Details: Standard Export Package, One container
Delivery Time: 25-45 DAYS
Payment Terms: D/A, D/P, L/C, T/T
Supply Ability: 50 SET PER MONTH
Contact Now
Detailed Product Description
Features: With Air Blowing System Control: PLC
Automatic: Yes Gurantee: 2 Years, The Longest In China
Stations: 12/16/20/24/30 Stations For Choose Products: For Make Pvc Slipper, Sandals
High Light:

slipper manufacturing machine

,

flip flop making machine

,

200 Pairs / Hour Slipper Making Machine

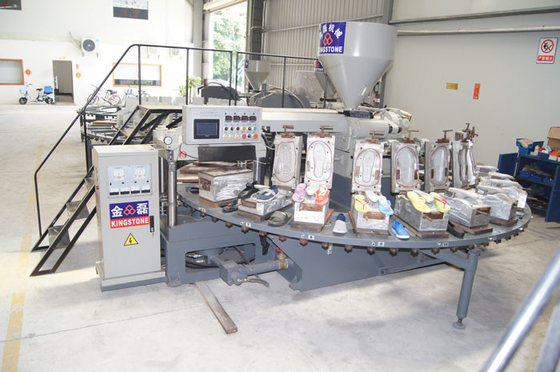

Kingstone PVC Slipper and Sandal Making Machine Single Color Air Blowing Machine JL-108



PVC slippers production line.jpg.pdf



Applications:

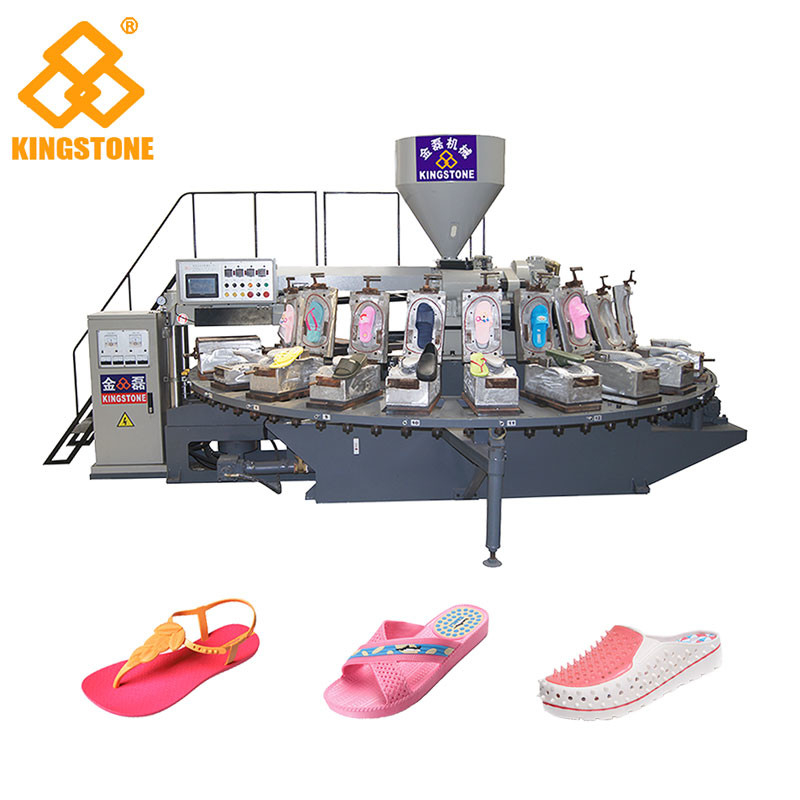

120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine 0





Features:



1. It could be equipped with air blowing system and can produce light weight, particularly the need for reinforced cooling effect. Computerization in analysis and design, the machine is well in stability.



2. The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.



3. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.



4. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.



5. Conformed to human engineering in design, it features easy and friendly operation.



6. The devised C-shaped structure that strengthens cooling system suits particularly the need for reinforced cooling effect.



7. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.



8. Specially designed, the oil pressure circuit board is simple in structure.





Specifications
Machine model JL-108
Mould-clamping Unit
Work station   12,16,20,24,30
Clamping force TON 80
Opening stroke MM 210
Mould dimension MM 600*280
Height of injection nozzle MM 280
Injection Unit
Injector SET 1
Screw diameter MM 60/65/70
Screw L/D ratio L/D 20
Max.injection volume cm3 650-1000
Injection speed Cm/s 10
Screw rotation speed R.P.M 0-200
Electricity Consumption Normal Servo
Heating power of injector KW 7 7
Hydraulic unit motor KW 18.5 15.7+7.5
Total power KW 25.5 30.2
Temperature control Section 4 4
Power consumption per hour Kw/h 15-20 7-10
Dimension and Weight 24 Stations
Machine dimension (L*W*H)MM 4600*3600*2300
Machine weight KGS 6000
*Note:Above data only for reference.


Welcome to Kingstone Machinery!



We are good manufacturer for various kinds of shoes making machine, like pvc slipper air blowing machine, plastic shoes making machine, rain boots machine, EVA machine, PU pouring machine, rubber sole machine, DIP Shoes Machine, etc.

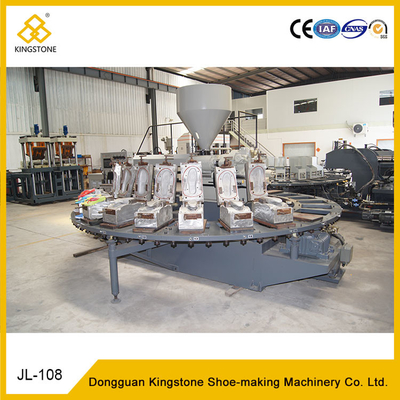

120-200 Pairs / Hour PVC lady's Sandal Slipper Making Machine Single Color Air Blowing Machine 1
