| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-288-3C |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Net Weight: | 18 Tons | Certification: | SGS,CE,RHOS |
|---|---|---|---|
| Protivity: | 1500-2000 Pairs/day | Product Color: | One/two/three |
| Finished Products: | Rain Boots, Gumboots, Labour Shoes | ||
| High Light: | pvc air blowing injection machine,shoe making production line,Full Plastic Boot Making Machine |
||

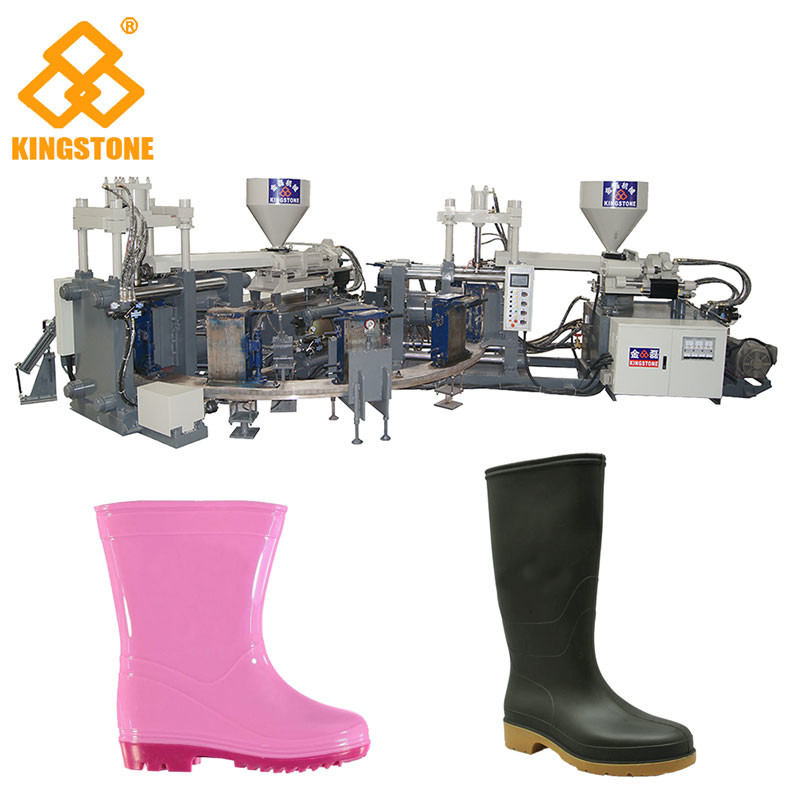

Three Color Full Plastic Rain Boot Making Machine For PVC / TPR Raw Material
Gumboots production line.jpg.pdf

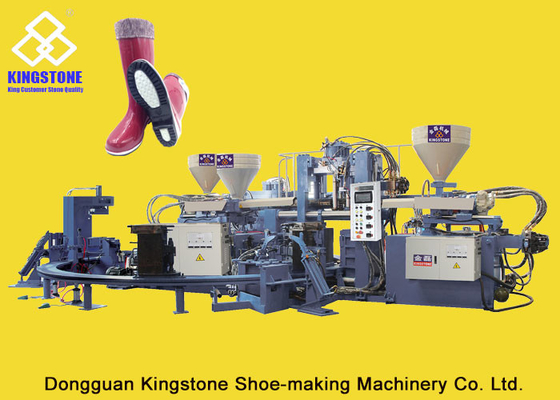

This machine is for producing three colors rain boots.
Feature:
1. Specially designated to manufacture different height thermoplastic PVC/TPR rain boots and shoes;
2. Adop oil pressure circuit design for mold close to short the cycle time and optimize productivity;
3. Reasonable structure to ensure easy operation and safety;
4. With 12 or 16 station, can put different sizes and styles at the same time
5. Servo system optional can help you to save 30% energy
| Specifications | ||
| Machine model | JL-288-3C | |
| Mould-clamping Unit | ||
| Work station | 16 | |
| Clamping force | TON | 220 |
| Opening stroke | MM | 350 |
| Mould dimension | MM | 360*200*680 |
| Height of injection nozzle | MM | 280 |
| Injection Unit | ||
| Injector | SET | 3 |
| Screw diameter | MM | 95,70,60 |
| Screw L/D ratio | L/D | 19 |
| Max.injection volume | cm3 | 1700,750,650 |
| Injection speed | Cm/s | 520 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption | ||
| Heating power of injector | KW | 10,6,6 |
| Hydraulic unit motor | KW | 22.5,18.75,15 |
| Total electric consumption | KW | 78.25 |
| Temperature control | Section | 5*3 |
| Dimension and Weight | ||
| Machine dimension | (L*W*H)MM | 9100*6700*2600 |
| Machine weight | KGS | 25000 |
| *Note:Above data only for reference. | ||

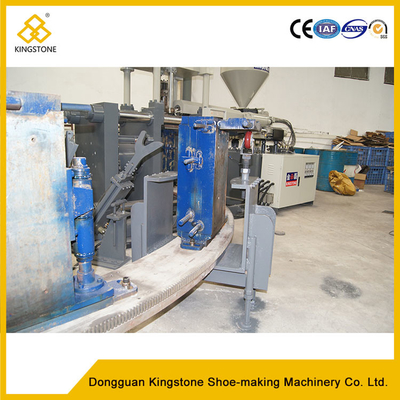

Machine Details:
