| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-208-4S |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Name: | Shoe Sole Making Machine | Workstations: | 4 |
|---|---|---|---|
| Color: | 1/2 Color Products | Automatic: | YES |
| Size: | 7.5*3.8*2.8m | Gurantee: | 2 Years |
| High Light: | shoe sole mould making machine,pvc sole making machine,Tpr Outsole Moulding Machine |
||

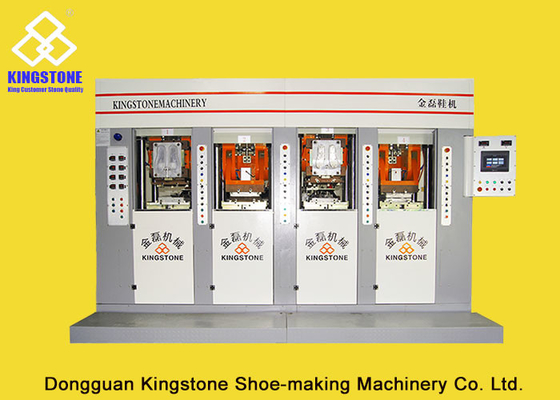

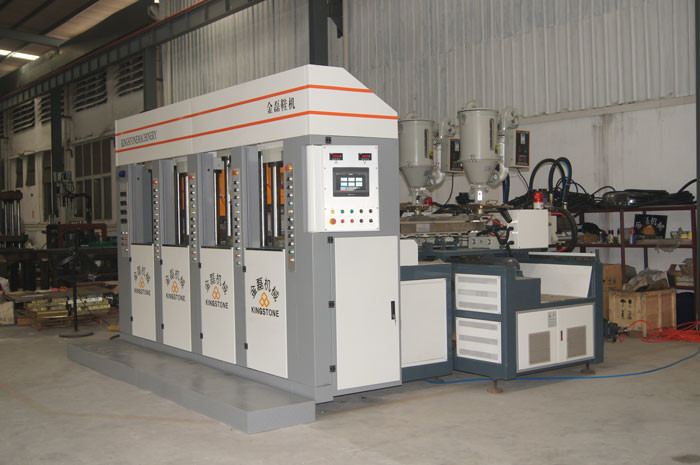

Static slide type PVC/Tpr Outsole Injection Moulding Machine 4 stations 2 injectors JL-208-4S
Shoes sole production line.jpg.pdf
Features:
1. Suitable material: TR, TPU, TPR, PVC
2. Production: various kinds of TR TPU soles and products.
3. Low operation height. Proper height of control plastforma fits the body engineering.
4. The varrel temperatujre controlled with 4-stage P.I.D, ensuring constant temperature to keep the ight quality.
5. The machine has economy design, taking up only small space, saving energy, asking for fewer operators.
Sample manufactured by our PVC sole injection machine:
| Specifications | ||
| Machine model | JL-208-4S | |
| Mould-clamping Unit | ||
| Work station | 4 | |
| Clamping force | TON | 220 |
| Opening stroke | MM | 350 |
| Mould dimension | MM | 300*400, depend on shoe design |
| Mould height | MM | 100-200, customized |
| Rotating head | . | 0°-90° |
| Injection Unit | ||
| Injector | SET | 2 |
| Screw diameter | MM | 60/65/70 |
| Screw L/D ratio | L/D | 22 |
| Max.injection volume | cm3 | 650-1000 |
| Injection pressure | Kg/cm² | 650 |
| Screw rotation speed | R.P.M | 0-185 |
| Electricity Consumption | ||
| Heating power of injector | KW | 11*2 |
| Hydraulic unit motor | KW | 22.5+13 |
| Total electric consumption | KW | 60 |
| Temperature control | Section | 4 |
| Dimension and Weight | ||
| Machine dimension(L*W*H) | M | 6.3*3.5*2.8 |
| Machine weight | TONS | 18 |
| *Note:Above data only for reference. | ||
Shipping & Package:
Shipping: by sea;
Package: one container, standard export package.
