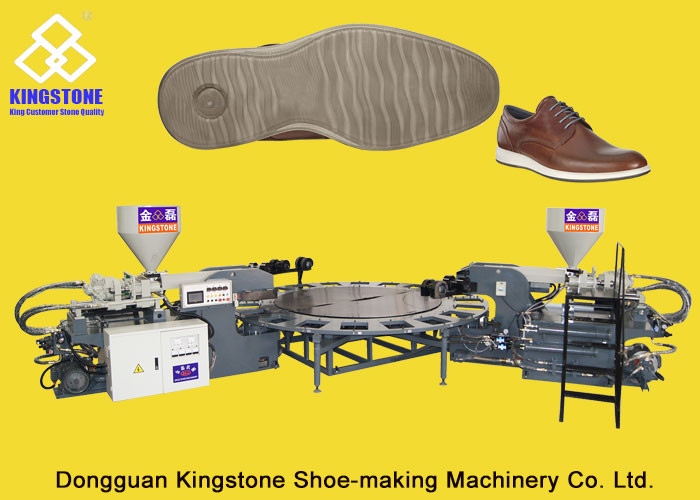

Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine

Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine

  • Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine
  • Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine
  • Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine
Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine
Product Details:
Place of Origin: Dongguan City, China
Brand Name: Kingstone
Certification: CE, SGS
Model Number: JL-105-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: 25-45 DAYS
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Environment: Yes Work Stations: 10/12/16/20/24/30 Stations And Others
Certificate: CE,SGS And Others Output: 160-270pairs/hour
Size: 8.8*3.6*2.5m Products: Sole, Outsoles
High Light:

tpr injection moulding machine

,

shoe injection molding machine

,

Automatic Rotary Sole Making Machine



Automatic Rotary Two Color PVC TPR Outsole Direct Injection Moulding Machine ​JL-105-2C





About our factory:

Dongguan Kingstone Shoe-making Machinery Co., Ltd. is a professional manufacturer for various kinds of shoes making machine.

Our factory is near Dongguan Station, welcome to contact us and visit our factory.

Our address: Huarui Industrial Park, Hengjiang Village, Chashan Town, Dongguan City, Guangdong Province, China.





Features of our sole making machine:



1.Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.



2. Product:Specialized in producing various kinds of one color outsoles for sport shoes, leisure shoes, slippers, sandals, man’s and lady’s shoes in general, etc.



3. Computerization in analysis and design, the machine is well in stability.



4. Conformed to human engineering in design, it features operational compatibility.



5. The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.



6. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.



7. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

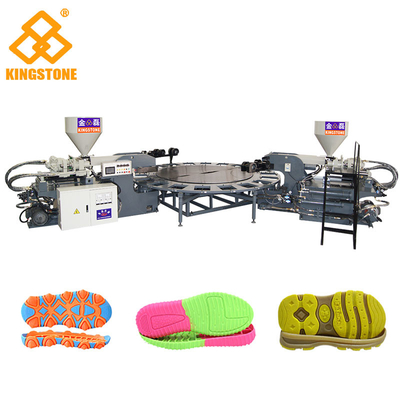

Outsole samples produced by our sole making machine:



Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine 0Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine 1Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine 2





Professional specifications of our sole making machine:



Specifications
Machine model JL-105-2C
Mould-clamping Unit
Work station   12/16/18/20/24/30
Clamping force TON 80/120
Opening stroke MM 210
Mould dimension MM 600*280
Height of injection nozzle MM 280
Injection Unit
Injector SET 2
Screw diameter MM 55/60/65/70
Screw L/D ratio L/D 20
Max.injection volume cm3 500-1000
Injection speed Cm/s 10
Screw rotation speed R.P.M 0-200
Electricity Consumption Normal Servo
Heating power of injector KW 7*2 7*2
Hydraulic unit motor KW 15*2 (12.5+7.5)*2
Total power KW 44 54
Temperature control Section 4 4
Power consumption per hour Kw/h 25-30 15-20
Dimension and Weight 12 Stations
Machine dimension (L*W*H)MM 8800*3200*2500
Machine weight KGS 11000
*Note:Above data only for reference.

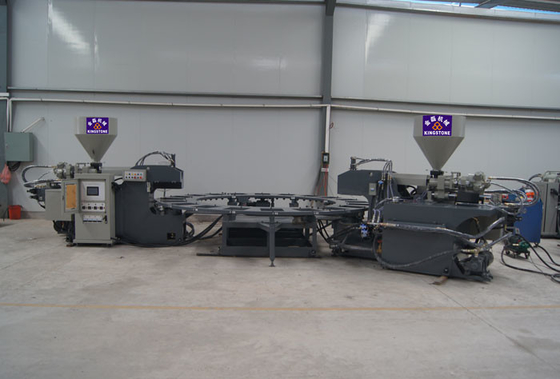

Sole making machine picture in our workshop


Automatic Rotary PVC/TPR Shoe Sole Making Machine , Outsole Direct Injection Moulding Machine 3
