| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-208-2S |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Full Automatic | Name: | Shoe Sole Injection Molding Machine |
|---|---|---|---|
| Workstations: | 2 Stations | Workers Need: | 1 People |
| Rotary Head: | 90 Degree | Suitable Material: | TR TPU PVC TPR |
| Automatic Open-mold: | YES | Safe Working: | YES |
| High Light: | tpr injection moulding machine,shoe injection molding machine,2 Colors TPR Sole Making Machine |
||

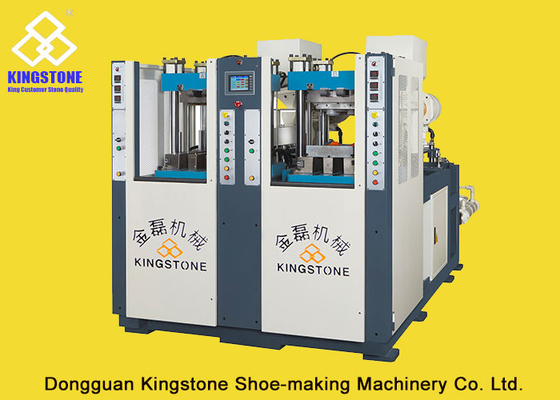

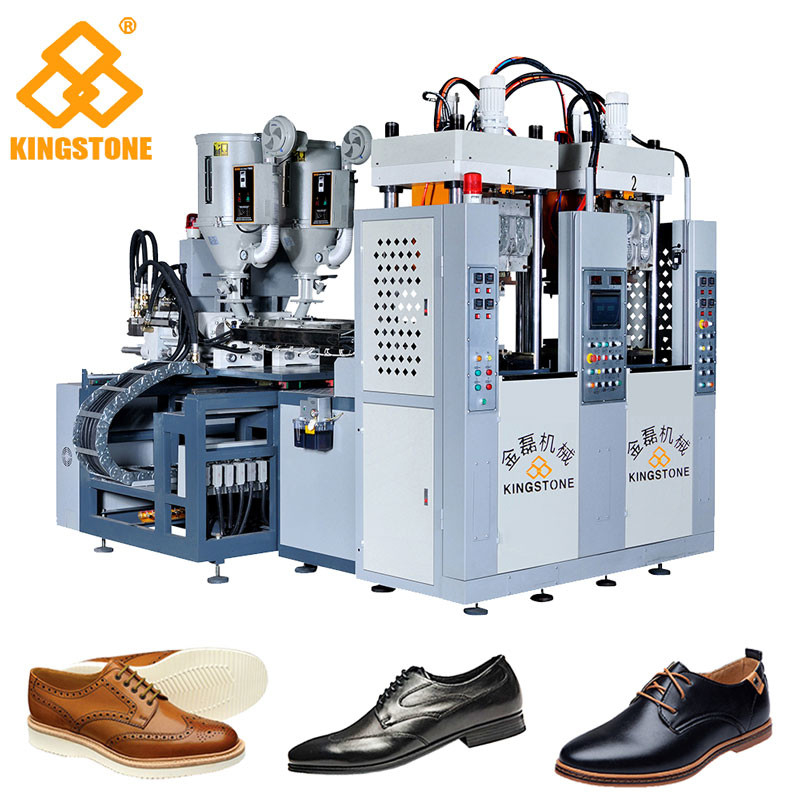

High Grade Men Leather Shoes TPR Sole / Outsoles Injection Moulding Machine Two Colors JL-208-2S2G
Shoes sole production line.jpg.pdf
What can we do for you?
1. To share our 30 years experiences with our respected customer.
2. To supply whole production line for making shoes (Include Machine, Mould, Material).
3. To support our customer on Factory Building, Factory Management, Production & Package for Shoes, Sales Layout, Market Development.
4. To service customer with machine operation and maintenance.
5. To solve the problem quickly and efficiently on the after sales service.
Features:
1.This machine is suitable for injecting 1/2 color soles such as TR, TPR, TPU, PVC etc.
2.Adopting Electrical cabinet integrated and hydraulic systems integration, man machine interface, display of touch screen, operate easily.
3.The barrel temperature controlled with P.I.D,ensuring constant temperatur and high quality product.
4.The straight pressure hydraulic system, which is very strong, fast mold locking system, Mould thickness adjusting automatic.
5.When the moulding cycle is completed, the mould would be open on top, take the shoes out easily.
| Specifications | |||||
| Machine model | JL-208-0202 | JL-208-0204 | |||
| Mould-clamping Unit | |||||
| Work station | 2 | 2 | |||
| Clamping force | TON | 220 | 220 | ||
| Opening stroke | MM | 350 | 350 | ||
| Mould dimension | MM | 300*400 | 300*400 | ||
| Mould height | MM | 100-200/150-250 | 100-200/150-250 | ||
| Rotating head | . | 0°-90° | 0°-90° | ||
| Injection Unit | |||||
| Injector | SET | 2 | 4 | ||
| Screw diameter | MM | 60/65/70 | 60/65/70 | ||
| Screw L/D ratio | L/D | 22 | 22 | ||
| Max.injection volume | cm3 | 650-1000 | 650-1000 | ||
| Injection pressure | Kg/cm² | 650 | 650 | ||
| Screw rotation speed | R.P.M | 0-200 | 0-200 | ||
| Electricity Consumption | Normal | Servo | Normal | Servo | |
| Heating power of injector | KW | 11*2 | 11*2 | 11*4 | 11*4 |
| Hydraulic unit motor | KW | 22.5 | 15+11 | 22.5 | 15+15 |
| Total power | KW | 50 | 50 | 70 | 80 |
| Temperature control | Section | 4 | 4 | 4 | 4 |
| Power consumption per hour | Kw/h | 25-30 | 15-20 | 30-35 | 18-22 |
| Dimension and Weight | |||||
| Machine dimension(L*W*H) | M | 3.0*3.5*2.8 | 3.0*3.5*2.8 | ||
| Machine weight | TONS | 11 | 12 | ||
Guarantee
2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.
After-sales Service
1. We has professional international engineer for international service;
2. Provide machine installation in door service;
3. Provide training for work machine and make shoes;
4. Provide online chat for machine questions;
5. Provide other products service.
