| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-108 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package, One container |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | D/A, D/P, L/C, T/T |
| Supply Ability: | 50 SET PER MONTH |
| Material: | PVC, TPU, TPR | Workstation: | 12/16/20/24/30 Stations |
|---|---|---|---|
| Productivity: | 120-200 Pairs/hour | Warranty Period: | 2 Years, The Longest In China |
| Installed Size: | 4.6*3.6*2.3m | Production Time: | 25-45 Days |
| High Light: | slipper chappal machine,flip flop making machine,Plastic Shoe Making Production Line |
||

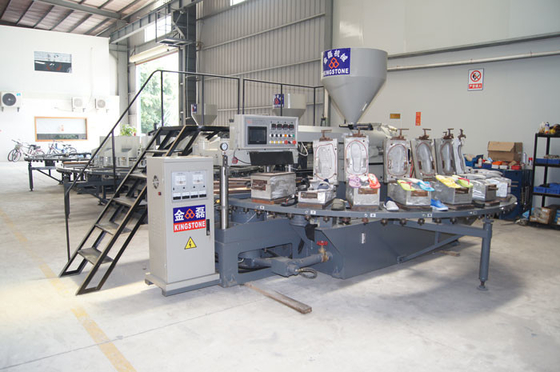

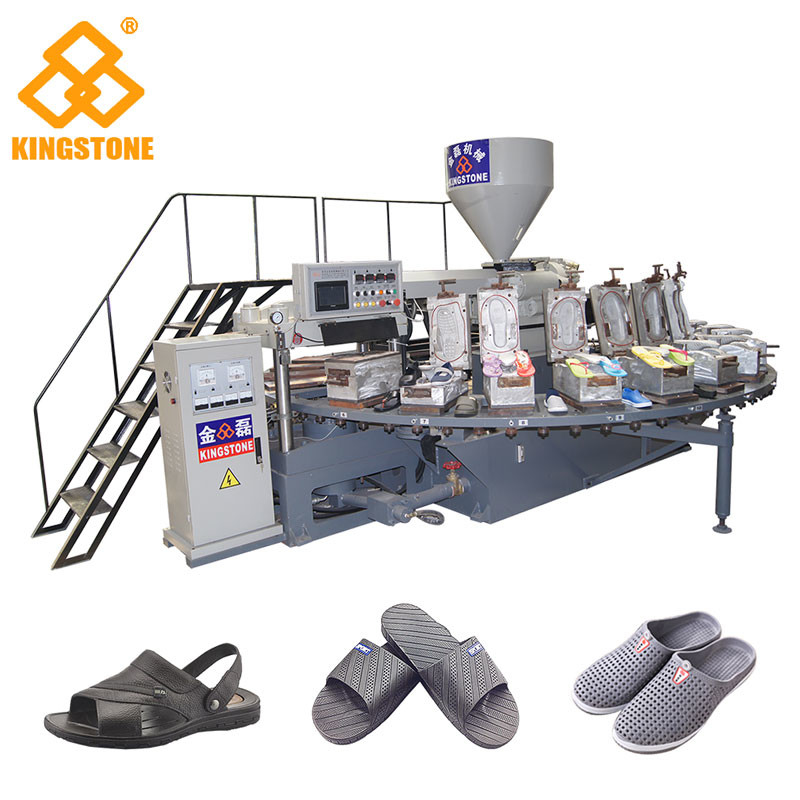

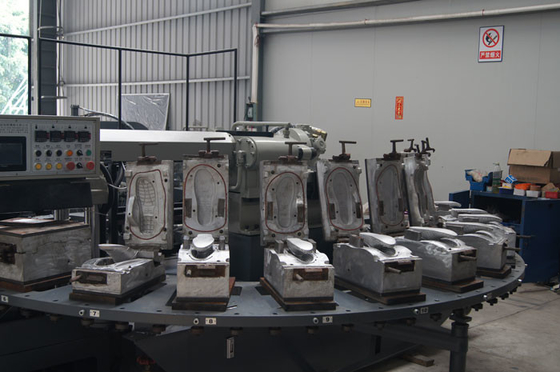

Rotary One Color PVC PCU Slipper Air Blowing Moulding Machine JL-108
PVC slippers production line.jpg.pdf
Our air blowing slipper machine features:
This machine is specialized in producing 1 color slippers and sandals.
It is particularly effective to the making of all-plastic sport shoe, and leisure shoes etc.
Our machine is suitable for all kinds of thermoplastic materials, such as PVC PCU and TPR.
1. It could be equipped with air blowing system and can produce light weight, particularly the need for reinforced cooling effect. Computerization in analysis and design, the machine is well in stability.
2. Specially designed, the oil pressure circuit board is simple in structure.
3. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.
4. Conformed to human engineering in design, it features easy and friendly operation.
5. Number of various stations may be optionally for small quantity or mass production.
Professional specifications of our air blowing slipper machine:
| Specifications | |||
| Machine model | JL-108 | ||
| Mould-clamping Unit | |||
| Work station | 12,16,20,24,30 | ||
| Clamping force | TON | 80 | |
| Opening stroke | MM | 210 | |
| Mould dimension | MM | 600*280 | |
| Height of injection nozzle | MM | 280 | |
| Injection Unit | |||
| Injector | SET | 1 | |
| Screw diameter | MM | 60/65/70 | |
| Screw L/D ratio | L/D | 20 | |
| Max.injection volume | cm3 | 650-1000 | |
| Injection speed | Cm/s | 10 | |
| Screw rotation speed | R.P.M | 0-200 | |
| Electricity Consumption | Normal | Servo | |
| Heating power of injector | KW | 7 | 7 |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 |
| Total power | KW | 25.5 | 30.2 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 15-20 | 7-10 |
| Dimension and Weight | 24 Stations | ||
| Machine dimension | (L*W*H)MM | 4600*3600*2300 | |
| Machine weight | KGS | 6000 | |
| *Note:Above data only for reference. | |||
