| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE,SGS |
| Model Number: | JL-HT002 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard wooden package |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 50 SETS PER MONTH |
| Max Stamping Area: | 180*300mm | Dimension: | 1250*750*1850MM |
|---|---|---|---|
| Heating Power: | 1.5KW | Gas Pressure: | 0.5-0.7bar |
| Package: | Wooden Case | Application: | Industrial Use |
| Machine Weight: | 400kg | ||
| High Light: | sole printing machine,plastic mixer machine,2D Heat Transfer Shoe Printing Machine |
||

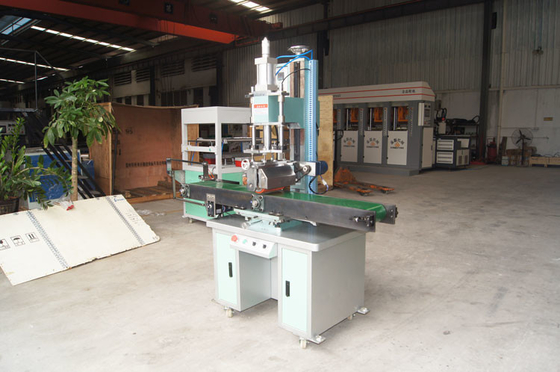

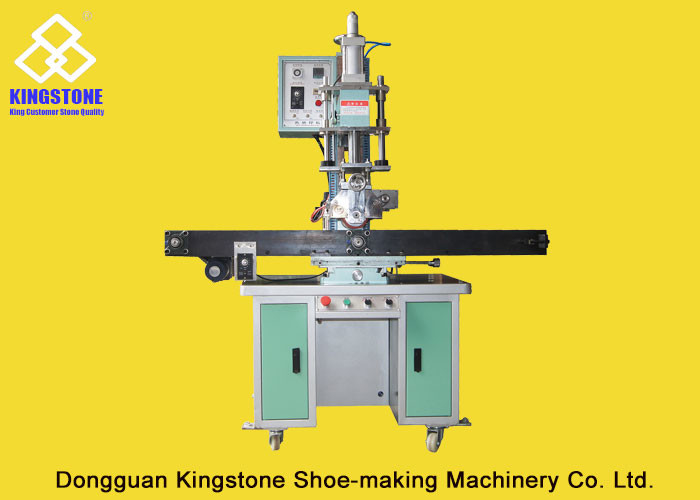

2D Heat Transfer PVC EVA Shoe Sole Printing Machine for Slippers Sandals Flop Flops Soles
Semi-automatic transfer:
1. The ability to process 750 pair of slipper per hour
2. Semi-automatic assembly line person as a group
3. The electronic control, easy and convenient to handle
4. Adjustable stamping pressure, temperature and speed.
5. Built in auto-counting
6. Workbench can moves all around automatically, be advantageous for stamping counterpoint operation
7. The height of hot stamping head is adjustable, and with big range.
| Machine model | JL-HT002M |
| Max stamping area | 180*300mm |
| Workbench Size | 250*30MM |
| Stamping temperature | 0-399℃ |
| Max stamping speed | 750-1000 pairs/hour |
| Rated voltage | 220V60/50Hz |
| Heating power | 1.5Kw |
| Gas pressure | 0.5-0.7bar |
| Machine dimension | 1250*750*1850MM |
| Machine weight | 400kg |
Payment Terms
1. Negotiated, 30% T/T down payment , balance shall be paid before shipment.
2. T/T, Westem Union, PayPal, Escow, MoneyGram.
Packing
Professional export package, Wooden case packing.
Guarantee
2 years. We provide 2 years guarantee time for all of our machine, it’s the longest time in China.
