| Place of Origin: | Dongguan City, China |
| Brand Name: | Kingstone |
| Certification: | CE, SGS |
| Model Number: | JL-105-3C |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 25-45 DAYS |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50 SETS PER MONTH |
| Type: | Three Color Pvc Sole Machine | Feature: | Direct Inject 3 Colors |
|---|---|---|---|
| Workers: | 3 People | Output: | 130-180pairs/hour |
| Equipped: | Cooling Water System | Products: | Sole, Outsoles |
| Suitable Material: | PVC TPR | ||
| High Light: | sole injection molding machine,shoe sole moulding machine,PVC Sole Machine Direct Injection |
||

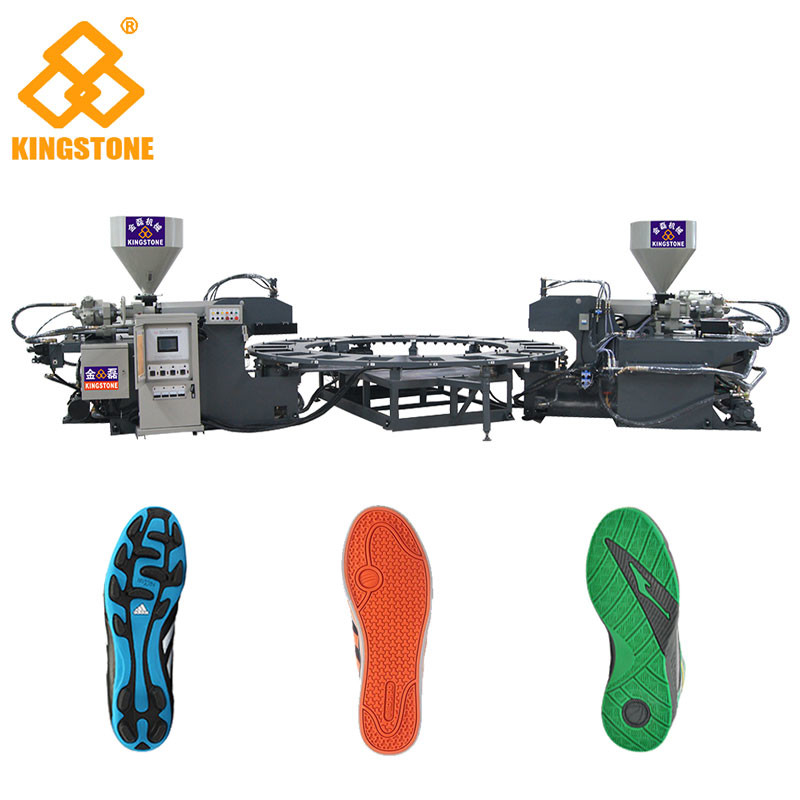

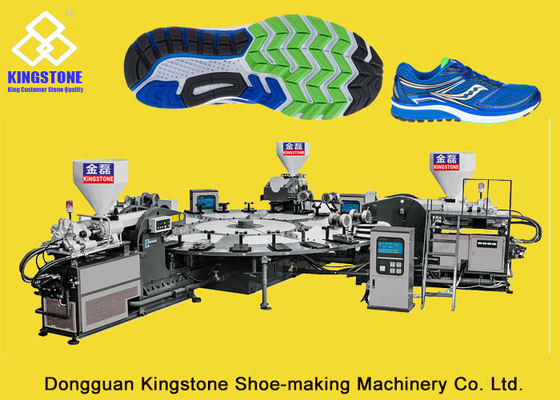

Automatic Rotary Three Color PVC TPR Outsole Direct Injection Moulding Machine JL-105-3C
Descriptions:
A good choice for produce three color PVC TPR outsoles, can choose manual / automatic operate, easy operate and human struction for workers.
Features:
1. Suitable Material: PVC and TPR.
2. Produce: single color, double color, three color, four color soles for various kinds of sports shoes.
3. Low-power design, save energe.
4. Operating parameters to set directly, adjusted in accordance with the specific parameters of different materials to ensure products quality.
5. Manual / automatic two kinds operate, to ensure the good production.
6. Good close-mold, to ensure the high quality of soles.
| Specifications | |||
| Machine model | JL-105-3C | ||
| Mould-clamping Unit | |||
| Work station | 12/16/18/20/24/30 | ||
| Clamping force | TON | 80/120 | |
| Opening stroke | MM | 210 | |
| Mould dimension | MM | 600*280 | |
| Height of injection nozzle | MM | 280 | |
| Injection Unit | |||
| Injector | SET | 3 | |
| Screw diameter | MM | 55/60/65/70 | |
| Screw L/D ratio | L/D | 20 | |
| Max.injection volume | cm3 | 500-1000 | |
| Injection speed | Cm/s | 10 | |
| Screw rotation speed | R.P.M | 0-200 | |
| Electricity Consumption | Normal | Servo | |
| Heating power of injector | KW | 7*3 | 7*3 |
| Hydraulic unit motor | KW | 15*3 | 12.5+7.5,(9.4+7.5)*2 |
| Total power | KW | 66 | 57.9 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 35-40 | 25-30 |
| Dimension and Weight | 24 Stations | ||
| Machine dimension | (L*W*H)MM | 9600*7600*2350 | |
| Machine weight | KGS | 15000 | |
| *Note:Above data only for reference. | |||
Finished Products:
This machine can produce one color soles, two color soles, three colors soles.
It can set in PLC screen seperate.
